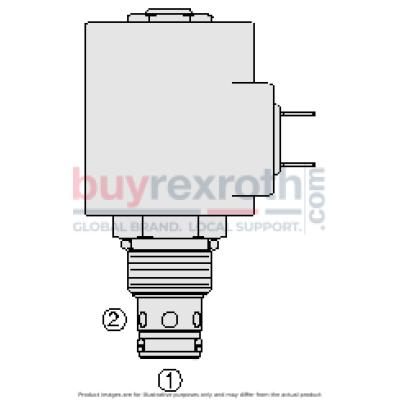

SV10-20M-0-N-24EL SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5029774
Model : SV10-20M-0-N-24EL SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5029774 (5029774) is a solenoid-operated, 3-way, normally closed, poppet-type, screw-in hydraulic cartridge valve designed for precision in hydraulic systems. This model is particularly suited for low flow circuits and functions effectively as a blocking or load-holding device. It incorporates a standard SV and manual override MO options which are ideal for applications requiring pull-only manual override capabilities for handles or cable linkage.
Operationally, the 5029774 valve serves a dual function. When de-energized, it acts as a check valve allowing fluid flow from port 1 to port 2 while blocking the flow from port 2 to port 1. Upon energization, the valve’s poppet lifts to facilitate an open flow path from port 1 to port 2, simultaneously restricting flow in the opposite direction from port 2 to port 1. This feature makes it highly versatile for various hydraulic applications.
Key features of this model include its continuous-duty rated coil and hardened seat which ensure long life and minimal leakage. The efficient wet-armature construction enhances its performance while optional coil voltages and terminations offer flexibility for different system requirements. The unitized, molded coil design aids in robust operation with an optional waterproof E-Coils that are rated up to IP69K, ensuring suitability in harsh environmental conditions. Additionally, it has an industry-common cavity which simplifies installation processes and compatibility issues. An optional position sensor enhances functionality by providing real-time valve status which is crucial for automated systems.
Overall, the Hydraforce 5029774 offers reliable performance with enhanced durability features making it suitable for specialized hydraulic applications requiring precise control and operational reliability.
$95.50 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 26, 2026
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
