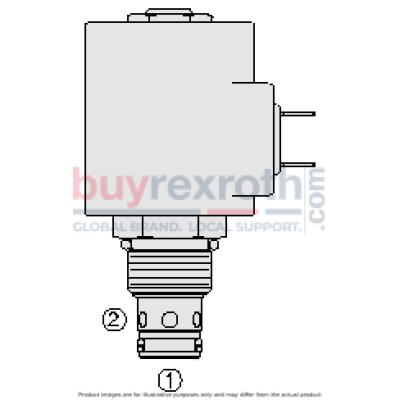

SV10-20YS-0-N-24DL CARTRIDGE
Manufacturer: Hydraforce
Material #: 5029628
Model : SV10-20YS-0-N-24DL CARTRIDGE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5029628 (5029628) is a solenoid-operated, 3-way, normally closed, poppet-type hydraulic cartridge valve designed for precise fluid control in hydraulic systems. This valve features a screw-in design that facilitates easy installation and maintenance. It operates as a blocking or load-holding device suitable for low-flow circuits that require pull-only manual override options for handles or cable linkage. When de-energized, the 5029628 functions as a check valve, permitting fluid flow from port 1 to port 2 while preventing backflow from port 2 to port 1. Upon energization, the valve's poppet lifts to enable flow from port 1 to port 2, simultaneously restricting flow in the opposite direction.
Key features of this model include a continuous-duty rated coil and a hardened seat that ensures durability and minimal leakage over its lifespan. The valve offers flexibility with optional coil voltages and terminations and boasts efficient wet-armature construction. Its cartridges are voltage interchangeable which enhances its adaptability across different systems. The unitized, molded coil design contributes to its robustness, while the manual override option adds to its versatility in operation control.
Additionally, this model can be equipped with optional waterproof E-Coils rated up to IP69K for high-degree protection against ingress of dust and water, making it suitable for harsh environmental conditions. The Hydraforce 5029628 also fits an industry-common cavity which simplifies system integration. An optional position sensor can be added to enhance monitoring and feedback capabilities. This combination of features makes it an efficient choice for specialized hydraulic applications requiring reliable performance and flexible configuration options.
$107.00 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 27, 2026
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
