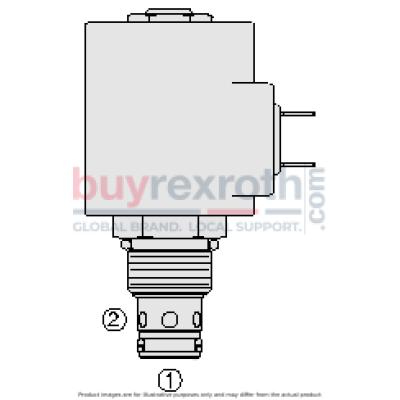

SV10-20M-8T-N-12DG SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5029346
Model : SV10-20M-8T-N-12DG SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5029346 (5029346) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precise flow control in hydraulic systems. This model features a standard SV1020 and a manual override (MO) option, enhancing its versatility and usability in various applications. The valve functions as an effective blocking or load-holding device suitable for low flow circuits that require pull-only manual override capabilities for handles or cable linkage.
Operationally, the 5029346 acts as a check valve when de-energized, allowing fluid to flow from port 1 to port 2 while preventing reverse flow from port 2 to port 1. Upon energization, the valve’s poppet lifts to facilitate flow from port 2 to port 1, simultaneously restricting the flow from port 1 to port 2. This dual functionality makes it ideal for applications requiring reliable control over fluid transfer and direction.
The valve is built with a continuous-duty rated coil and features a hardened seat that ensures longevity and minimal leakage under rigorous conditions. It also offers optional coil voltages and terminations to accommodate different electrical requirements. The efficient wet-armature construction along with unitized, molded coil design contributes to the robustness and reliability of the valve.
Additional options include waterproof E-Coils rated up to IP69K for enhanced protection against environmental elements, making it suitable for outdoor or harsh environments. The industry common cavity design of this model allows for easy installation and compatibility with existing systems. Lastly, there is an option for integrating a position sensor that aids in precise control of the valve positioning during operation.
$138.25 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 28, 2026
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
