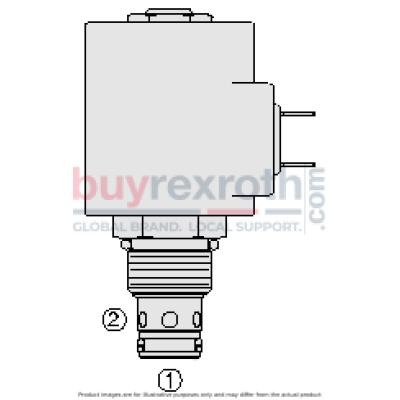

SV10-20M-6T-N-115AP SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5029102
Model : SV10-20M-6T-N-115AP SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5029102 (5029102) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve designed for precise control in hydraulic systems. This model features a standard SV1020 and manual override MO options, making it highly versatile for various applications. The valve functions as a blocking or load-holding device suitable for low flow circuits that require pull-only manual override capabilities for handles or cable linkage.
In its operation, the 5029102 remains closed when de-energized, acting as a check valve that allows fluid flow from port 1 to port 2 while blocking the reverse flow. Upon energization, the valve's poppet lifts to permit flow from port 2 to port 1, though the flow from port 1 to port 2 is severely restricted. This controlled operation ensures effective management of fluid in hydraulic systems.
Key features of the Hydraforce 5029102 include a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The valve offers options for different coil voltages and terminations to accommodate varying operational requirements. Its efficient wet-armature construction enhances performance while interchangeable voltage cartridges add flexibility. The unitized, molded coil design supports robust operation with an optional waterproof E-Coils rated up to IP69K for enhanced protection against environmental elements. Additionally, an industry-common cavity facilitates compatibility with existing systems, and an optional position sensor enhances functionality by monitoring the valve's status.
$153.50 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 27, 2026
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
