HSPEC12-32A-0-V-00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

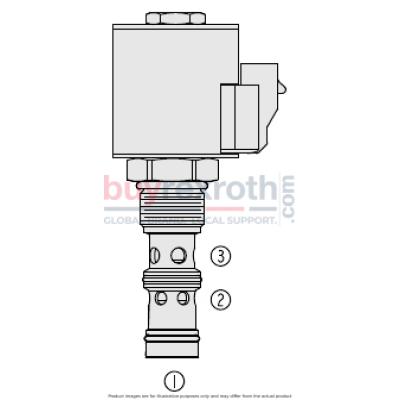

The Hydraforce 5027350V (5027350V) is a high-performance hydraulic valve designed for sophisticated fluid power applications. This proportional solenoid-operated, 3-way, normally closed flow control valve is specifically engineered for post-compensated systems with load sense capabilities. It excels in environments where flow sharing is critical, especially when the flow demand exceeds the available supply. The valve's integral post-compensator and load-sense feature ensure optimal performance by maintaining consistent flow out of port 2, regardless of load pressure changes. Operationally, the 5027350V blocks flow from port 3 to port 2 when de-energized and regulates the outgoing flow from port 2 in proportion to the current applied to its solenoid. This characteristic allows for precise control over fluid dynamics in a variety of machinery and equipment setups. The valve is also equipped with an optional A-type linear metering poppet and a manual override option, enhancing its versatility and usability. Designed with space efficiency in mind, this model reduces manifold space requirements and includes continuous-duty rated coils that are capable of handling rigorous operational demands. Moreover, its E-Coils are rated up to IP69K, offering superior protection against dust and water ingress under severe conditions. Each unit adheres to NFPA specification T2.6.1 standards, having been tested rigorously to ensure reliability at a verification level of 90% and an assurance level of 99%. This makes the Hydraforce 5027350V an ideal choice for applications requiring precise fluid control with dependable load sensing and pressure compensation capabilities.
