SV10-41-0-V-230AP W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

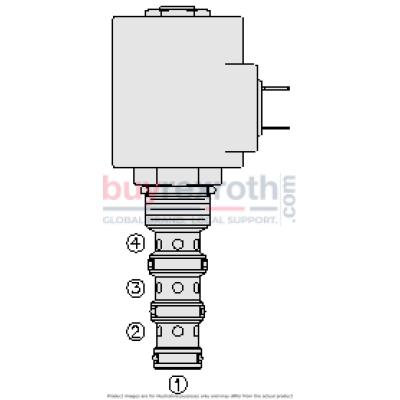

The Hydraforce 5027141 (5027141) is a high-performance, solenoid-operated hydraulic cartridge valve designed for precise control in fluid power applications. This direct-acting spool type valve features a 4-port, 2-position configuration that provides reliable operation and flexibility in integrating with various hydraulic systems. When de-energized, the SV1041 model effectively blocks flow to all ports, ensuring a secure shut-off position. Upon energization, the spool shifts to enable flow between port 3 and port 4, and from port 2 to port 1, facilitating efficient directional control of hydraulic fluids. This valve is engineered with a continuous-duty rated coil and incorporates a hardened precision spool and cage which enhance its durability and lifespan under continuous operation. It is equipped with efficient wet-armature construction and its cartridges are interchangeable across different voltages, adding to its versatility in system design. The unitized, molded coil design contributes to the robustness of the assembly. Additionally, the Hydraforce 5027141 offers optional features such as various coil voltages and terminations to accommodate diverse electrical requirements. For environments requiring enhanced protection against moisture and dust, waterproof E-Coils are available, rated up to IP69K. A manual override option provides added operational flexibility, allowing for manual control when needed. Designed with an industry-common cavity, this valve ensures ease of installation and compatibility with standard cavities prevalent in hydraulic systems across various applications. This feature simplifies maintenance and replacement processes, reducing downtime in critical operations. The capability of all ports to be fully pressurized further underscores the valve’s adaptability in complex hydraulic circuits where differential pressures are a factor.
