SV10-33J-0-N-00 W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

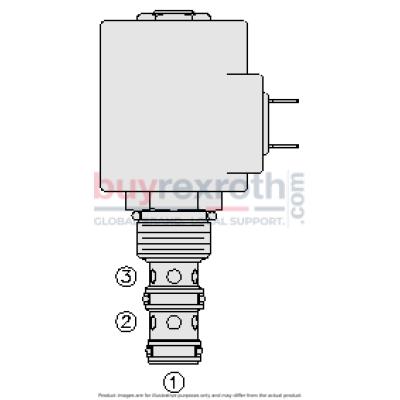

The Hydraforce 5026302 (5026302) is a solenoid operated, 3-port, direct acting, spool type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by allowing flow from port 3 to port 1 when de-energized, and shifts the flow from port 1 to port 2 when energized, simultaneously blocking flow at port 3. Notably, it is advised that the inlet flow source at port 1 should not be used under low flow conditions to maintain optimal functionality. The valve features a continuous-duty rated coil and boasts a hardened precision spool and cage which enhance its longevity and reliability in demanding applications. It is engineered with efficient wet-armature construction and the cartridges are voltage interchangeable which adds to its versatility. All ports on the valve can withstand full pressurization which enhances its adaptability across various operational settings. Additional functionalities include a unitized, molded coil design and a manual override option which provides extra control in managing flow paths manually if needed. For environments requiring rigorous standards, there is an optional waterproof E-Coils feature rated up to IP69K ensuring performance in wet conditions. The Hydraforce 5026302 fits an industry common cavity making it compatible with standard configurations, simplifying installation processes and replacements. Optional coil voltages and terminations are available to accommodate diverse electrical requirements, making this valve a flexible choice for integrating into varied hydraulic systems.
