SV10-29P-0-N-24ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

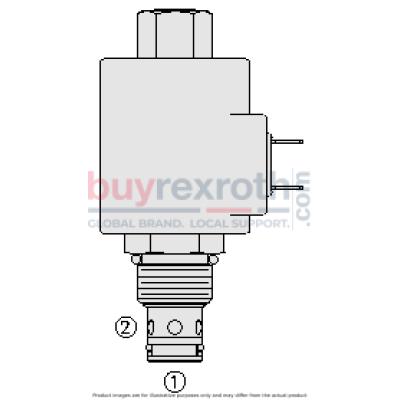

The Hydraforce 5024979 (5024979) is a solenoid-operated, 2-port, normally open, bidirectional screw-in hydraulic cartridge valve. Specifically designed to function as a load-holding or blocking valve, it is ideal for applications that require low internal leakage in both directions. This model features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. It offers flexibility with optional coil voltages and terminations, and the cartridges are designed to be voltage interchangeable. Additionally, the 5024979 provides an optional manual override feature and can be equipped with optional waterproof E-Coils, which are rated up to IP69K for high-level protection against ingress of dust and high-temperature, high-pressure water. This valve is compatible with industry-common cavity configurations, making it versatile for integration into various hydraulic systems without the need for extensive modifications.
