SP10-47D-8T-N-12DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

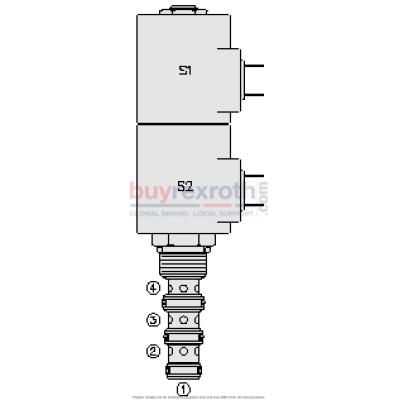

The Hydraforce 5022102 (5022102) is a solenoid operated, direct acting, 3 position, 4-way motor spool proportional directional control valve. Designed for integration into hydraulic systems, this screw-in hydraulic cartridge valve is engineered for use with general purpose hydraulic fluids. The model features a sophisticated design that includes a hardened precision spool and cage ensuring extended durability and performance under continuous duty operations. The SP1047DX configuration of the valve provides versatile flow control; when de-energized, it blocks flow to port 3 while allowing flow from port 2 to port 1 and from port 4 to port 1. Energizing coil 1 permits flow from port 3 to port 4 and from port 2 to port 1, whereas energizing coil 2 changes the flow path from port 3 to port 2 and from port 4 to port 1. Notably, although port 1 can be fully pressurized, it is not designed as the valve’s inlet. Additional features of this model include optional coil voltages and terminations which offer adaptability for various system requirements. A manual override option enhances operational flexibility. For environments requiring robust protection against moisture and dust, optional waterproof E-Coils are available rated up to IP69K. The efficient wet-armature construction along with good linearity and hysteresis properties make this valve an optimal choice for precise fluid control in hydraulic systems utilizing an industry-common cavity configuration.
