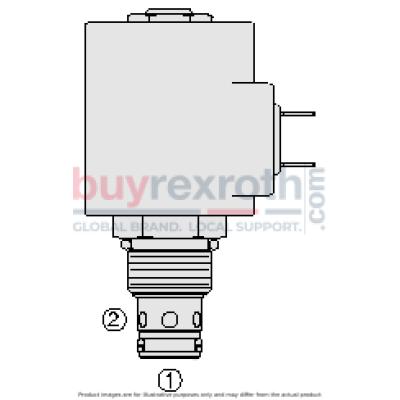

SV10-20-8T-V-24DS SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5020643
Model : SV10-20-8T-V-24DS SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5020643 (5020643) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve designed for precision and reliability in hydraulic systems. This model features a standard SV1020 and offers manual override options, making it versatile for applications requiring pull-only manual override for handles or cable linkage. The valve operates by allowing flow from port 1 to port 2 when de-energized, acting as a check valve. When energized, the valve's poppet lifts to open the flow path from port 2 to port 1 while significantly restricting flow in the opposite direction.
This unit is built with a hardened seat to ensure long life and minimal leakage and incorporates a continuous-duty rated coil that enhances its operational reliability. The efficient wet-armature construction contributes to its robust performance. For adaptability in various systems, the cartridges are voltage interchangeable with optional coil voltages and terminations available. The model also features a unitized, molded coil design that enhances durability.
Additionally, it includes an optional waterproof E-Coil rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. This makes it suitable for environments requiring stringent protection standards. A position sensor option is also available for applications needing precise control over valve positioning. Overall, the Hydraforce 5020643 offers effective blocking or load-holding capabilities in low flow circuits where such features are critical.
$113.50 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 26, 2027
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
