SV10-20-6T-N-12ERZ SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5020422
Model : SV10-20-6T-N-12ERZ SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

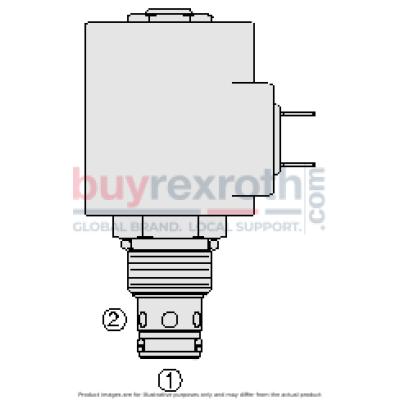

The Hydraforce 5020422 (5020422) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precise control in hydraulic systems. This valve features a standard SV1020 and manual override MO options, making it ideal as a blocking or load-holding device in low flow circuits. It is particularly suitable for applications requiring pull-only manual override for handles or cable linkage. The operation of this valve is straightforward: when de-energized, the SV1020X functions as a check valve by allowing fluid flow from port 1 to port 2 and blocking the flow in the reverse direction. Upon energization, the poppet lifts to permit flow from port 2 to port 1 while severely restricting flow from port 1 to port 2.
The Hydraforce 5020422 boasts several notable features including a continuous-duty rated coil and a hardened seat that ensures durability and minimal leakage over an extended period. It offers flexibility with optional coil voltages and terminations along with efficient wet-armature construction. The cartridges are voltage interchangeable which enhances versatility in system design. The unitized, molded coil design contributes to robust operation while the manual override option adds an extra layer of operational security. For environments requiring stringent protection against water ingress, optional waterproof E-Coils are available that are rated up to IP69K. Additionally, it fits an industry common cavity which simplifies installation processes and maintenance routines. A position sensor option is also available for applications requiring feedback on valve status.
$113.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as March 8, 2027
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
