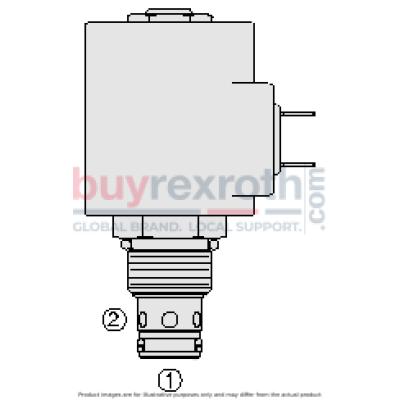

SV10-20-4B-N-115AG SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5020286
Model : SV10-20-4B-N-115AG SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5020286 (5020286) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precise control in hydraulic systems. This valve features a screw-in design with a standard SV1020 and manual override options, making it suitable for applications requiring a blocking or load-holding device in low flow circuits. The manual override functionality is particularly useful for systems that need pull-only manual intervention via handles or cable linkages.
Operationally, the 5020286 acts as a check valve when de-energized, permitting fluid flow from port 1 to port 2 while preventing reverse flow. Upon energization, the valve’s poppet lifts to allow flow from port 2 to port 1, with severe restriction on the reverse flow path. This dual functionality enhances system versatility and control.
The valve boasts several notable features aimed at improving performance and longevity. It includes a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage. The efficient wet-armature construction along with optional coil voltages and terminations provide flexibility and high operational efficiency. Furthermore, the unitized molded coil design contributes to its robustness.
Additional enhancements include an optional waterproof E-Coil rated up to IP69K for high-level protection against ingress of dust and water, making it suitable for harsh environments. The Hydraforce 5020286 also offers an industry-common cavity which simplifies installation processes across various applications. An optional position sensor can be integrated into the system for enhanced monitoring and feedback capabilities, ensuring optimal performance tailored to specific operational needs.
$138.25 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as March 4, 2027
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
