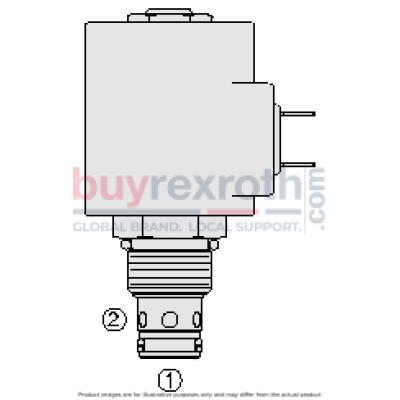

SV10-20-0-N-24DR SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5020109
Model : SV10-20-0-N-24DR SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5020109 (5020109) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precise fluid control in hydraulic systems. It features a standard SV1020 and manual override MO options, making it versatile for applications requiring pull-only manual override for handles or cable linkage. This valve functions effectively as a blocking or load-holding device in low flow circuits.
Operationally, the 5020109 acts as a check valve when de-energized, allowing fluid flow from port 1 to port 2 while preventing flow in the reverse direction. Upon energization, the valve’s poppet lifts to facilitate flow from port 2 to port 1 while significantly restricting the opposite flow. This dual functionality enhances its utility in various hydraulic setups.
Key features of this model include a continuous-duty rated coil and a hardened seat which ensure long life and minimal leakage under rigorous conditions. The efficient wet-armature construction along with unitized, molded coil design contributes to its robust performance and durability. The cartridges are voltage interchangeable which provides flexibility for system integration.
Additional options such as different coil voltages and terminations adapt to varying electrical requirements, while optional waterproof E-Coils that are rated up to IP69K offer resilience against harsh environmental conditions. The industry common cavity design facilitates easy installation and maintenance. Moreover, an optional position sensor enhances monitoring capabilities, ensuring more precise control of hydraulic operations. This combination of advanced features makes the Hydraforce 5020109 an essential component for specialized hydraulic applications demanding high reliability and performance.
$70.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 26, 2027
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
