SV10-20-0-N-24ER SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5020093
Model : SV10-20-0-N-24ER SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

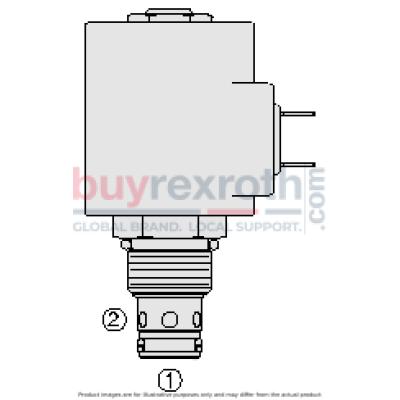

The Hydraforce 5020093 (5020093) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precise control in hydraulic systems. This model features standard SV1020 and manual override MO options, making it versatile for applications requiring reliable blocking or load-holding capabilities in low flow circuits. It is specifically engineered to accommodate pull-only manual override requirements for handles or cable linkage, enhancing its utility in various setups.
Operationally, the 5020093 acts as a check valve when de-energized, permitting fluid flow from port 1 to port 2 while preventing reverse flow from port 2 to port 1. Upon energization, the valve's poppet lifts to allow flow from port 2 to port 1, while significantly restricting the flow in the opposite direction. This dual functionality underscores its effectiveness in system safety and fluid control.
Key features of this model include a continuous-duty rated coil and a hardened seat that ensures durability and minimal leakage over time. The efficient wet-armature construction alongside interchangeable voltage cartridges enhances performance adaptability and maintenance ease. The unitized, molded coil design contributes to its robustness, with optional waterproof E-Coils available that are rated up to IP69K for high-level protection against dust and water ingress. Additionally, an industry-common cavity facilitates compatibility with existing systems without the need for extensive modifications. Optional position sensors can be integrated to provide real-time feedback on valve status, further optimizing operational control and system responsiveness.
$69.75 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 26, 2027
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
