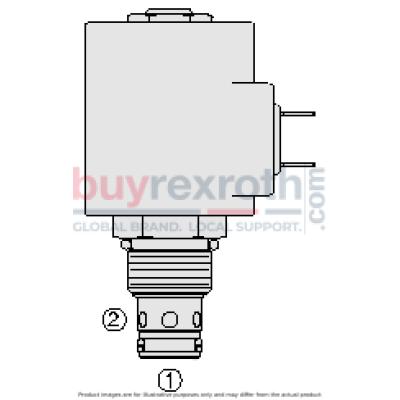

SV10-20-0-N-12ER SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5020091
Model : SV10-20-0-N-12ER SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5020091 (5020091) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precision in hydraulic systems. This model features a standard SV1020 and manual override MO options, making it versatile for applications requiring reliable blocking or load-holding capabilities. Specifically crafted for low flow circuits, the 5020091 includes a pull-only manual override that accommodates handles or cable linkages efficiently.
Operationally, the valve functions as a check valve when de-energized, facilitating flow from port 1 to port 2 while preventing reverse flow from port 2 to port 1. Upon energization, the valve's poppet lifts to enable flow from port 2 to port 1 while significantly restricting the opposite flow direction. This dual functionality enhances system control and responsiveness.
The valve is notable for its continuous-duty rated coil and hardened seat which ensure long life and minimal leakage under demanding conditions. It also offers flexibility with optional coil voltages and terminations to suit varied electrical requirements. The efficient wet-armature construction along with unitized, molded coil design contributes to its robust performance and durability. For environments requiring heightened protection against moisture and dust, there are optional waterproof E-Coils rated up to IP69K.
Moreover, the Hydraforce 5020091 is designed with an industry-common cavity which simplifies installation processes and ensures compatibility with standard configurations in hydraulic systems. The availability of a position sensor option further enhances its utility in precision applications where feedback on valve position is crucial for operational accuracy.
$69.75 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 26, 2027
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
