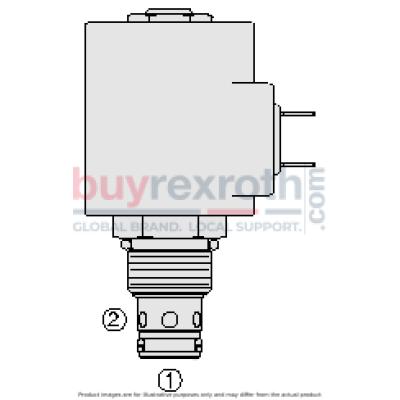

SV10-20S-0-N-230AG W/ 7004406 NUT
Manufacturer: Hydraforce
Material #: 5020086
Model : SV10-20S-0-N-230AG W/ 7004406 NUT
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5020086 (5020086) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for use in low flow circuits. This model features a screw-in design with a standard SV1020 and manual override (MO) options, making it suitable as a blocking or load-holding device. It operates by allowing flow from port 1 to port 2 when de-energized and acts as a check valve that blocks flow from port 2 to port 1. Upon energization, the valve's poppet lifts to open the flow path from port 2 to port 1, while significantly restricting flow in the opposite direction.
Key features of this model include a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. The valve offers optional coil voltages and terminations for versatility in application. Its efficient wet-armature construction enhances its performance, while the cartridges are designed to be voltage interchangeable. The unitized, molded coil design contributes to its durability and reliability in various environments. Additionally, the manual override option provides added operational flexibility.
For enhanced environmental protection, there are optional waterproof E-Coils available that are rated up to IP69K. The Hydraforce 5020086 also supports an industry common cavity which simplifies installation processes across various applications. A position sensor option is available for applications requiring precise control and feedback of the valve position.
$92.50 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 21, 2026
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
