SP10-20A-0-N-12DR SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

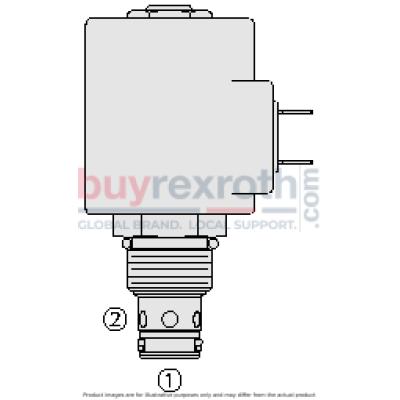

The Hydraforce 5010791 (5010791) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This model is specifically designed for low leakage blocking and load-holding applications across various hydraulic systems. It functions uniquely; when de-energized, the SP1020XXX acts as a check valve by allowing flow from port 1 to port 2 while concurrently blocking flow from port 2 to port 1. Upon energization, the poppet lifts to facilitate the opening of the flow path from 2 to 1. Among its notable features are a continuous-duty rated coil and efficient wet-armature construction that enhance its durability and performance under continuous operational conditions. The valve also includes manual override options which provide additional control and flexibility during operation. For environments requiring robust protection against ingress of dust and water, optional waterproof E-Coils are available which are rated up to IP69K. This model also benefits from an industry common cavity design which simplifies installation and maintenance procedures. Additionally, the Hydraforce 5010791 offers a metering option that enhances its application in systems requiring precise control of flow rates, making it an adaptable solution for a wide range of hydraulic control applications.
