SP10-20A-0-N-24DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

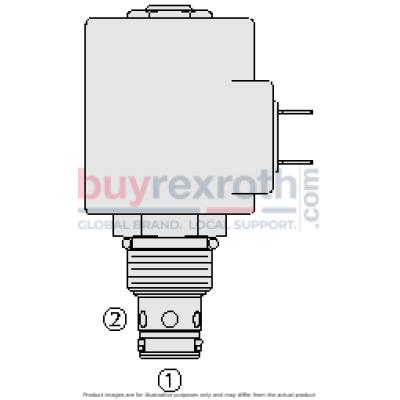

The Hydraforce 5010504 (5010504) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications across various systems. When de-energized, the 5010504 functions as a check valve by allowing flow from port 1 to port 2 while blocking flow in the reverse direction from port 2 to port 1. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. This model is distinguished by its continuous-duty rated coil and efficient wet-armature construction which enhance its reliability and performance under continuous operational conditions. The valve also features manual override options which provide additional operational flexibility and control. For environments requiring robust protection against dust and water ingress, the optional waterproof E-Coils are available, rated up to IP69K standards ensuring high resilience in harsh conditions. Further enhancing its versatility is the industry common cavity design of the Hydraforce 5010504, which allows for easy integration or replacement in various hydraulic systems without the need for extensive modifications. The metering option available with this model provides precise control over fluid flow, making it an ideal choice for applications requiring exacting fluid management.
