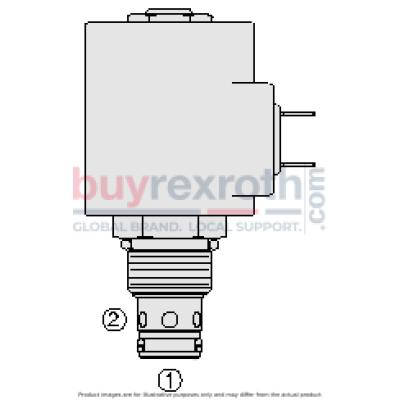

SV10-20MS-0-N-24DG SOLENOID VALVE
Manufacturer: Hydraforce
Material #: 5010331
Model : SV10-20MS-0-N-24DG SOLENOID VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5010331 (5010331) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precision and durability in hydraulic systems. This model features a standard SV1020 and manual override MO options, making it highly versatile for specific application needs. The valve functions effectively as a blocking or load-holding device in low flow circuits, particularly where pull-only manual override is necessary for handle or cable linkage operations.
Operationally, the 5010331 acts as a check valve when de-energized, permitting fluid flow from port 1 to port 2 while preventing reverse flow from port 2 to port 1. Upon energization, the valve's poppet lifts to enable flow from port 2 to port 1 while severely restricting the opposite flow direction. This functionality underscores its utility in circuits requiring precise control over fluid handling and direction.
Key features of the Hydraforce 5010331 include a continuous-duty rated coil and a hardened seat which ensures long life and minimal leakage. It also offers optional coil voltages and terminations to accommodate varying electrical requirements. Its efficient wet-armature construction along with interchangeable voltage cartridges highlight its adaptability and ease of integration into existing systems. The unitized, molded coil design enhances durability and performance reliability.
Additional options such as waterproof E-Coils rated up to IP69K ensure suitability for harsh environments, while an industry-common cavity allows for standardization across various applications. A position sensor option is available for applications requiring feedback on valve status, enhancing operational accuracy and system monitoring capabilities.
$100.00 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 26, 2026
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) (sv10-20) Burst pressure: 896 bar (13000 psi) (sv10-20) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At (sv10-20 and sv10-20m) 207 bar (3000 psi) 3 drops/min At (sv10-20j/y) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv10-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code: |  |
| Optional Position Sensor: | Seal kit:
SK10-2X-T (x = N (x = n, V and P seal option) Seal kit installation instructions Housings: Available 10-2w valve bodies Coils: 10 size D coils 10 size E coils |
