SV08-20M-0-N-12EL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

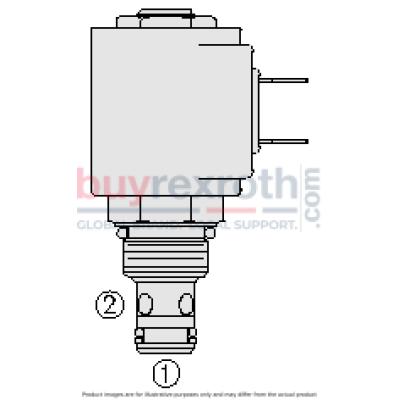

The Hydraforce 5009013 (5009013) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precise fluid control in hydraulic systems. This valve features a screw-in design that facilitates easy installation and maintenance. It is primarily used as a blocking or load-holding device in low flow circuits and is equipped with pull-only manual override options suitable for handles or cable linkage. Operationally, the 5009013 acts as a check valve when de-energized, permitting fluid flow from port 1 to port 2 while blocking the reverse flow from port 2 to port 1. Upon energization, the valve’s poppet lifts to open the flow path from port 2 to port 1, simultaneously restricting flow in the opposite direction. This dual functionality makes it versatile for various hydraulic applications requiring controlled flow and pressure management. The valve boasts several robust features enhancing its performance and durability. It has a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, critical for maintaining system integrity and efficiency. Additionally, it offers optional coil voltages and terminations to accommodate different electrical requirements. The cartridges are voltage interchangeable which provides flexibility in usage across different systems with varying voltage levels. The unitized, molded coil design contributes to its compact size and reliability. Moreover, the Hydraforce 5009013 utilizes an industry common cavity configuration making it compatible with standard cavities used in many hydraulic systems. This compatibility along with its compact size allows for easier integration into existing setups without extensive modifications.
