SV08-41-0-N-00 W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

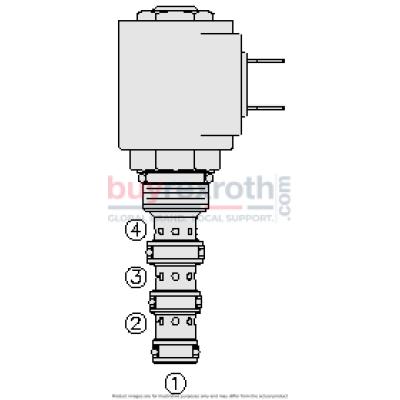

The Hydraforce SV08-41-0-N-00 (5007105) is a high-performance solenoid-operated, 4-way, 2-position, direct-acting spool-type hydraulic cartridge valve designed for precise control in hydraulic systems. This screw-in valve demonstrates robust functionality by blocking flow to all ports when de-energized, and directing flow from port 3 to port 4 and port 2 to port 1 when energized. It is capable of handling pressures up to 207 bar (3000 psi) and operates efficiently within a temperature range of -40 to +100°C with Buna N seals, further extended up to +204°C with fluorocarbon seals and up to +225°C with polyurethane seals. The SV08-41-0-N-00 excels in environments requiring reliable performance under conditions of varying fluid viscosities (7.4 to 420 cSt) and high contamination levels (up to ISO 4406:2018/14). Its internal wetted surface area measures approximately 123 cm², ensuring minimal internal leakage which is crucial for maintaining system integrity and performance. The valve's compact design includes a weight of just 0.13 kg and installation specifications such as a VC084 cavity type, allowing for straightforward integration into various hydraulic setups. Additional features include corrosion protection that withstands up to 960 hours of salt spray per ASTM B117 standards, ensuring durability in harsh environments. The valve also supports various coil options including size D and E coils, providing flexibility for system designers. With no orientation restrictions during installation and specified torques for cartridge installation (25.8 to 28.5 Nm) and coil nut torque (5.4 to 6.8 Nm), the SV08-41-0-N-00 offers ease of use alongside its robust performance capabilities.
