SV08-31-6TD-N-12ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

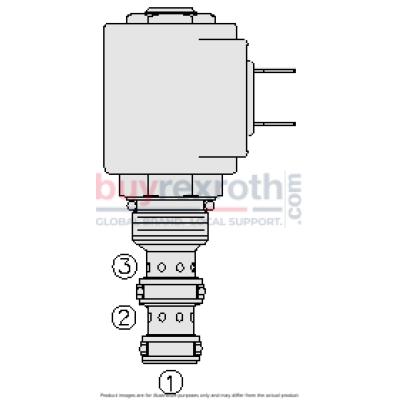

The Hydraforce 5006741 (5006741) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic directional valve designed for efficient control in hydraulic systems. Its operation is straightforward: when de-energized, the SV0831X model allows flow from port 1 to port 2 while blocking flow at port 3. Upon energization, the cartridge’s spool shifts to open the flow from port 3 to port 1 and blocks the flow out of port 2. This valve features a continuous-duty rated coil and a hardened precision spool and cage that enhance its durability and lifespan. The efficient wet-armature construction ensures reliable performance under various conditions. Noteworthy is its unitized, molded coil design which contributes to its robustness and operational reliability. The Hydraforce 5006741 offers versatility with optional coil voltages and terminations and can accommodate manual override options. It also supports optional waterproof E-Coils that are rated up to IP69K for high-level protection against ingress of dust and high-temperature water jets. Its compact size makes it suitable for applications where space is at a premium but robust performance is required. All ports on this valve can be fully pressurized, enhancing its flexibility in various hydraulic schematics. This model utilizes an industry common cavity which simplifies installation and maintenance while ensuring compatibility with standard configurations in hydraulic systems.
