SP08-20-0-N-24DR SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

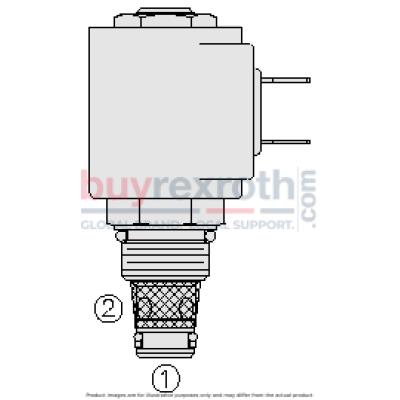

The Hydraforce 5004585 (5004585) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This model is specifically designed for low leakage blocking and load-holding applications. The SP0820X configuration of the valve functions as a check valve when de-energized, permitting flow from port 1 to port 2 while blocking flow in the reverse direction. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. This valve is notable for its continuous-duty rated coil and efficient wet-armature construction, which enhance its reliability and performance. It also features manual override options and optional waterproof E-Coils that are rated up to IP69K, ensuring robust performance even in demanding environmental conditions. The compact size of the valve and its adherence to industry common cavity specifications underscore its versatility and ease of integration into various hydraulic systems.
