SP10-20Y-0-N-24DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

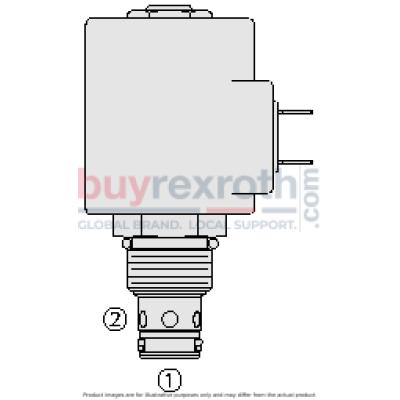

The Hydraforce 5004207 (5004207) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional, screw-in hydraulic cartridge valve. This valve is specifically designed for low leakage blocking and load-holding applications. The SP1020XXX model functions as a check valve when de-energized, facilitating flow from port 1 to port 2 while blocking flow in the reverse direction from port 2 to port 1. Upon energization, the poppet lifts to open the flow path from port 2 to port 1. This valve features a continuous-duty rated coil and efficient wet-armature construction that enhances its reliability and performance under various operational conditions. It also includes manual override options which add an extra layer of operational flexibility and safety by allowing manual control of the valve in case of emergency or system test procedures. Additionally, it offers optional waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. Moreover, the Hydraforce 5004207 is built with an industry-common cavity which simplifies installation and maintenance processes as it can easily replace or be replaced by other common valves in hydraulic systems without requiring significant modifications. The metering option available with this model allows for precise control over fluid flow, making it suitable for a variety of hydraulic applications requiring fine-tuned performance adjustments.
