SP08-20M-0-N-24EG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

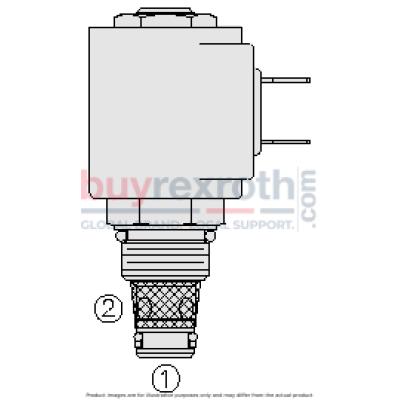

The Hydraforce 5004135 (5004135) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. This model is specifically designed for low leakage blocking and load-holding applications. The SP0820X configuration of the valve functions as a check valve when de-energized, allowing flow from port 1 to port 2 while blocking flow in the opposite direction. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. Notably efficient in its construction, the Hydraforce 5004135 features a continuous-duty rated coil and efficient wet-armature construction. It also offers flexibility with manual override options and can be fitted with optional waterproof E-Coils that are rated up to IP69K, ensuring robust performance in demanding environments. The valve benefits from an industry common cavity which simplifies installation and maintenance while its compact size allows for easier integration into various hydraulic systems without requiring substantial space.
