SP08-47DL-6T-N-24ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

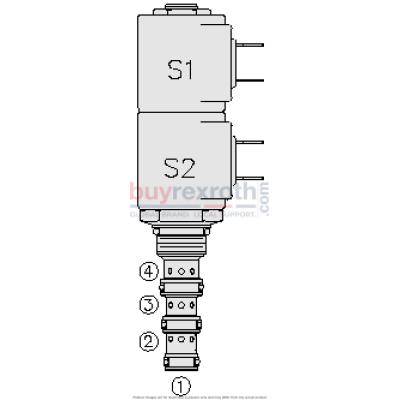

The Hydraforce 5004111 (5004111) is a solenoid-operated, direct-acting, 3-position, 4-way, motor spool, proportional directional control valve. Designed as a screw-in hydraulic cartridge valve, it is optimized for use with general-purpose hydraulic fluids. This model stands out for its versatility in controlling the flow direction and volume in hydraulic systems. When de-energized, the SP0847DX configuration blocks flow to port 3 while enabling flow from port 2 to port 1 and from port 4 to port 1. Energizing coil 1 allows flow from port 3 to port 4 and from port 2 to port 1. Conversely, activating coil 2 permits flow from port 3 to port 2 and from port 4 to port 1. Notably, this valve features a continuous-duty rated solenoid and boasts a hardened precision spool and cage which enhance its durability and lifespan. It offers flexibility with optional coil voltages and terminations along with a manual override feature. Furthermore, it supports optional waterproof ECoils that are rated up to IP69K for superior protection against dust and high-temperature high-pressure water jets. Its efficient wet-armature construction ensures reliable performance while being voltage interchangeable within cartridges that share an industry-common cavity design. This makes the Hydraforce 5004111 an ideal solution for applications requiring robust control of hydraulic fluid direction and volume under various operational conditions.
