Manufacturer: Hydraforce
Material #: 5003910VE

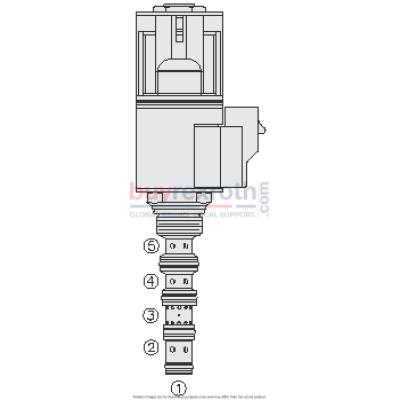

Model : SP08-57D-0-V-00 W/ E-COIL SPACER
$113.00 USD
More are expected on September 7, 2026
Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.| Qty | Price | Savings |
|---|---|---|
| 5-10 | $110.74 USD | $2.26 USD |
| 11+ | $109.61 USD | $3.39 USD |
Status: This product is temporarily out of stock.
Qty: Delivered as early as September 7, 2026 when ordered in
| Ratings: | Pressure Ratings Pressure rating: 241 bar (3500 psi) SP08-57D 207 bar (3000 psi) SP08-57DM Proof pressure: 345 bar (5000 psi) For SP08-57DM only Burst pressure: 655 bar (9500 psi) Flow Ratings Flow rating: See coil heating graph Maximum internal leakage: 10 in³/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 120 °C (-40 to 250 °F) Buna N -30 to 250 °C (-20 to 400 °F) Fluorocarbon -50 to 80 °C (-60 to 175 °F) Polyurethane Storage temperature: -40 to 70 °C (-40 to 158 °F) Ambient temperature: -40 to 70 °C (-40 to 158 °F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 420 cSt Operating temperature must not exceed limits of fluid viscosity or limits of seal storage temperature |
| Performance: |  |
| Installation Specifications: | Cavity:
VC08-5 08-size-5-way Cavities Cartridge installation torque: 33.9 to 40.7 N-m (25 to 30 ft-lb) Maximum allowable torque: 54 N-m (40 ft-lb) Aluminum Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION SP08-57DE-H-J-L E Manual Override E B Momentary PushPull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade |
