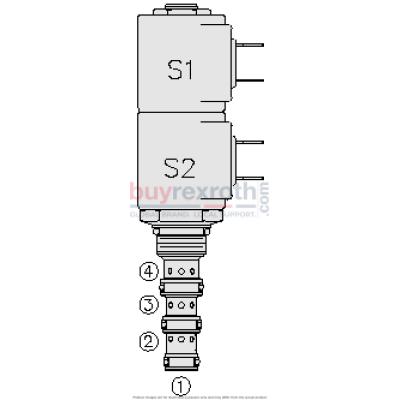

The Hydraforce SP08-47DL-0-N-00 (5003671) is a sophisticated solenoid operated, direct acting, 3 position, 4-way, motor spool, proportional directional control valve. Designed for use with general purpose hydraulic fluids, this valve is a screw-in hydraulic cartridge type that offers precise control in various hydraulic systems. The SP08-47DL-0-N-00 features a manual override option and showcases continuous-duty rated solenoids which are designed for longevity and reliability. Operationally, when deenergized, the SP08-47DL-0-N-00 blocks flow to port 3 while allowing flow from port 2 to port 1 and from port 4 to port 1. Energizing coil 1 permits flow from port 3 to port 4 and from port 2 to port 1. Conversely, activating coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. It's important to note that while port 1 may be fully pressurized, it is not intended as the valve’s inlet. This model is engineered with hardened precision spool and cage for extended durability. It also supports optional coil voltages and terminations along with waterproof ECoils rated up to IP69K for enhanced protection against environmental conditions. The efficient wet-armature construction contributes to its robust performance. The Hydraforce SP08-47DL-0-N-00 accommodates a wide range of operating parameters including pressures up to 3500 psi (241 bar), with proof pressures reaching up to 5000 psi (345 bar), and burst pressures up to an impressive 9500 psi (655 bar). Its operational fluid temperatures range between -40°C (-40°F) and +100°C (+212°F) depending on the seal material used. This valve is ideal for applications requiring reliable performance in demanding conditions such as construction machinery, industrial systems, or mobile hydraulics where precise fluid control is necessary.
