SP10-20-0-N-12DR SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

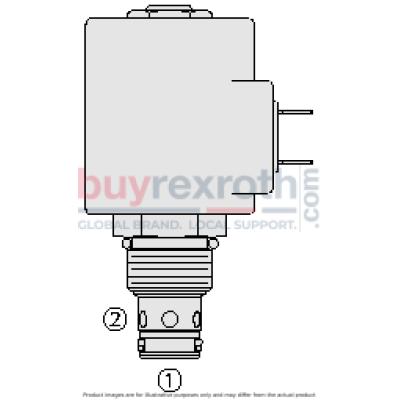

The Hydraforce 5003592 (5003592) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. It is specifically designed for low leakage blocking and load-holding applications, making it highly suitable for precise hydraulic control in various equipment. When de-energized, the SP1020XXX model functions as a check valve, allowing fluid flow from port 1 to port 2 while blocking the flow from port 2 to port 1. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1. This valve features a continuous-duty rated coil and efficient wet-armature construction that enhance its reliability and performance under continuous operational conditions. It also includes manual override options which provide additional control flexibility in system operation or emergency situations. For environments requiring robust protection against dust and water ingress, there are optional waterproof E-Coils available, which are rated up to IP69K. The Hydraforce 5003592 fits an industry common cavity, ensuring compatibility with standard configurations and simplifying installation processes. Additionally, it offers a metering option for more precise control of fluid flow, further enhancing its applicability in sophisticated hydraulic systems.
