SP10-20T-0-N-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

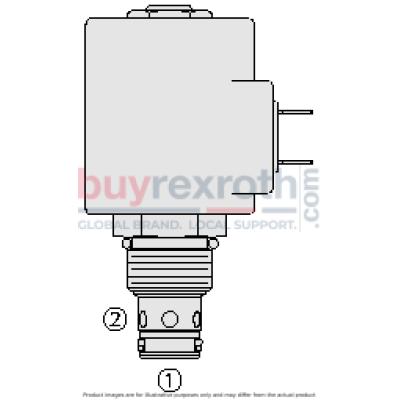

The Hydraforce SP10-20T-0-N-00 (5003578) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve designed for precise control in hydraulic systems. This valve is ideal for low leakage blocking and load-holding applications across various industries. When de-energized, the SP10-20T-0-N-00 functions as a check valve, permitting flow from port 1 to port 2 while blocking the opposite direction. Upon energization, the poppet lifts to allow flow from port 2 to port 1. This model boasts a continuous-duty rated coil and efficient wet-armature construction that enhances its reliability and performance. It also features manual override options and optional waterproof E-Coils that are rated up to IP69K, ensuring robust performance even in harsh environmental conditions. The valve fits an industry-common cavity which simplifies installation processes. Key specifications include a maximum operating pressure of 250 bar (3625 psi), with proof and burst pressures reaching up to 345 bar (5000 psi) and 827 bar (12000 psi) respectively. It supports a wide range of operating temperatures depending on seal material – from -40°C to +100°C with Buna N seals, -26°C to +204°C with Viton seals, and -54°C to +107°C with polyurethane seals. The valve's design ensures minimal internal leakage of less than five drops per minute at 207 bar (3000 psi), which is critical for maintaining system efficiency. Overall, the Hydraforce SP10-20T-0-N-00 offers versatile application possibilities and robust performance for efficient fluid control in hydraulic systems requiring precise operation and reliability under varying environmental conditions.
