SP08-20-8T-N-24DL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

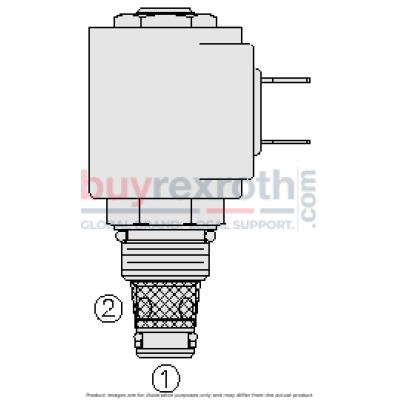

The Hydraforce 5003464 (5003464) is a solenoid-operated, 2-port, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. It is meticulously designed for low leakage blocking and load-holding applications. The operation of this valve is dual-mode; when de-energized, the SP0820X functions as a check valve allowing flow from port 1 to port 2 while blocking flow from port 2 to port 1. Upon energization, the poppet lifts to open the flow path from port 2 to port 1. Among its notable features are a continuous-duty rated coil and efficient wet-armature construction which enhance its performance and reliability in various hydraulic systems. Additionally, it comes with manual override options and can be equipped with optional waterproof E-Coils that are rated up to IP69K, ensuring robust performance even in environments where moisture or dust ingress is a concern. The compact size of the Hydraforce 5003464 allows for easier installation and flexibility in system design without compromising on power or efficiency. This model is designed to fit an industry-common cavity which simplifies integration into existing setups or replacements in standardized systems.
