SP08-20T-0-N-12DR/Z SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

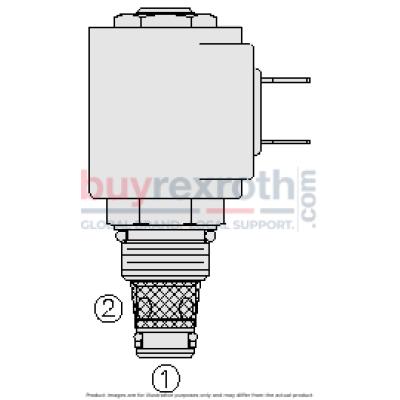

The Hydraforce SP08-20T-0-N-12DR/Z (5003424) is a high-performance, solenoid-operated hydraulic cartridge valve, specifically designed for demanding low leakage blocking and load-holding applications. This 2-port, poppet-type, proportional valve operates as a normally closed unit. In its default state, the SP08-20T allows fluid flow from port 1 to port 2 while blocking the reverse flow. Upon energization, the valve's poppet lifts to enable flow from port 2 to port 1. This model is engineered with a continuous-duty rated coil and efficient wet-armature construction which enhances its reliability and performance under continuous operational conditions. The optional waterproof E-Coils, which can be rated up to IP69K, provide additional protection against harsh environmental conditions, making it suitable for outdoor or moisture-prone applications. A manual override option offers added control flexibility. The compact size of the SP08-20T combined with an industry common cavity (VC082) makes it easy to install and serviceable in a wide range of equipment configurations without requiring extensive modifications. Its robust design includes steel with hardened work surfaces and zinc-plated exposed surfaces to resist wear and corrosion effectively. Key specifications include a maximum operating pressure of 207 bar (3000 psi), with proof pressure up to 413 bar (6000 psi) and burst pressure capabilities reaching 827 bar (12000 psi). It supports a wide range of fluid temperatures from -40°C to +100°C (-40°F to +212°F) depending on seal material used. Additionally, it accommodates mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt. Overall, the Hydraforce SP08-20T-0-N-12DR/Z offers versatile application potential in systems requiring precise control over fluid handling and directionality under varied environmental conditions.
