SV38-38P-0-N-115AG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

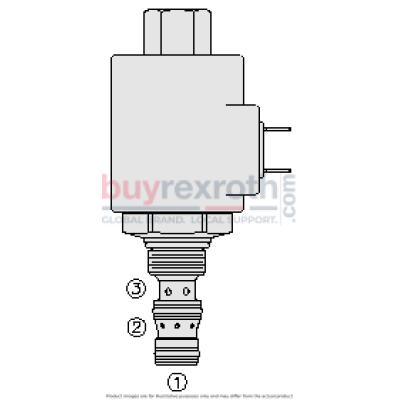

The Hydraforce 5003138 (5003138) is a solenoid-operated, 2-position, 3-way, bidirectional blocking, screw-in hydraulic cartridge valve specifically designed for low leakage in load-holding applications. This valve effectively blocks flow between ports under various conditions depending on its energized state. When de-energized, it blocks flow from port 3 to port 2 or vice versa, ensuring stable and secure load-holding. Upon energization, the valve shifts to block flow from port 2 to port 1 or the reverse pathway. This model is distinguished by its continuous-duty rated coil and hardened seat which contribute to its long life and minimal leakage. It also features efficient wet-armature construction that enhances its performance in rigorous conditions. The cartridges are voltage interchangeable which provides flexibility for system integration. Additionally, the unitized, molded coil design is robust and engineered for durability. The Hydraforce 5003138 also offers optional coil voltages and terminations which allow customization according to specific requirements. For environments requiring enhanced protection against moisture and dust, optional waterproof E-Coils are available that are rated up to IP69K. This valve utilizes an industry common cavity which facilitates easy installation and compatibility with existing systems without the need for extensive modifications or custom parts. This versatility makes the Hydraforce 5003138 ideal for a wide range of hydraulic applications requiring reliable load control and minimal fluid leakage.
