SV38-38-0-N-12EY SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

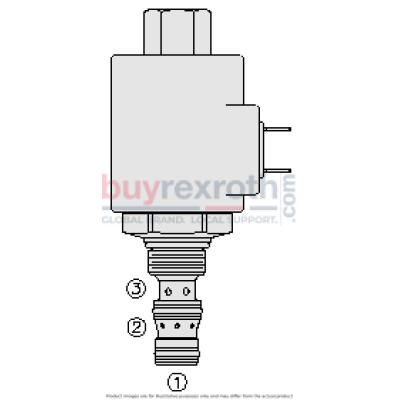

The Hydraforce SV38-38-0-N-12EY (5002969) is a high-performance solenoid-operated, 2 position, 3-way hydraulic cartridge valve specifically designed for bidirectional blocking and low leakage in load-holding applications. The valve ensures reliable control by blocking flow from port 3 to port 2 or vice versa when de-energized, and from port 2 to port 1 or vice versa when energized. This functionality makes it an excellent choice for various hydraulic circuits that require controlled flow and pressure. The SV38-38-0-N-12EY is engineered with a continuous-duty rated coil and a hardened seat to enhance longevity and minimize leakage. Its efficient wet-armature construction along with interchangeable voltage cartridges add to its versatility and ease of use in different system configurations. The unitized, molded coil design enhances durability, while optional waterproof E-Coils rated up to IP69K can be used for applications requiring rigorous environmental protection. This valve operates effectively within a fluid temperature range of -40°C to +100°C with Buna N seals, extending up to +204°C with fluorocarbon seals, making it suitable for varied operating environments. It supports mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The maximum operating contamination level is maintained as per ISO 4406 standards, ensuring the valve's reliability and performance in critical applications. Additional features include an industry-common cavity (VC08-3), facilitating easy installation across standard platforms without orientation restrictions. Optional accessories like different seal kits (SK383XMM) tailored for specific seal options and various housing types further enhance its adaptability across multiple hydraulic setups.
