SV38-38-0-N-115AP SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

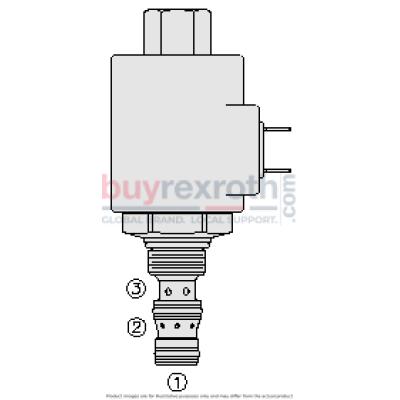

The Hydraforce 5002963 (5002963) is a solenoid-operated, 2-position, 3-way, bidirectional blocking, screw-in hydraulic cartridge valve. Specifically designed for low leakage in load-holding applications, this valve exemplifies precision engineering for robust hydraulic systems. Its operation is straightforward: when de-energized, the SV3838 configuration blocks flow from port 3 to port 2 and vice versa. Conversely, when energized, it restricts flow between port 2 to port 1 and from port 1 to port 2. Key features of the Hydraforce 5002963 include a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, enhancing the reliability and efficiency of hydraulic operations. The valve also boasts efficient wet-armature construction and unitized, molded coil design which contribute to its durability and consistent performance. Additionally, it offers optional coil voltages and terminations to accommodate varying operational requirements and electrical interfaces. For environments demanding high standards of durability and protection against ingress of dust and water, the Hydraforce 5002963 provides optional waterproof E-Coils rated up to IP69K. This feature makes it suitable for use in harsh conditions where exposure to elements is a concern. Furthermore, its industry common cavity design allows for compatibility with standard cavities in hydraulic systems, ensuring easy integration or replacement without extensive modifications. This versatility combined with its performance characteristics makes the Hydraforce 5002963 an essential component for specialized hydraulic applications requiring precise control over fluid handling and pressure maintenance.
