***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

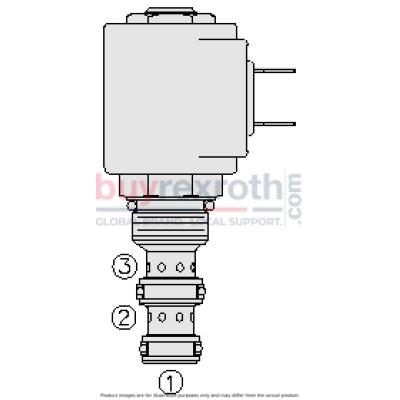

The Hydraforce SV08-31-0-N-24ERZ (5000384) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic directional valve designed for efficient control in hydraulic systems. This compact valve operates by allowing flow from port 1 to port 2 when de-energized and shifts to allow flow from port 3 to port 1 while blocking port 2 when energized. It features a continuous-duty rated coil and a hardened precision spool and cage that ensure long life and reliability. The SV08-31-0-N-24ERZ is engineered for versatility with optional coil voltages and terminations, as well as manual override options. Its efficient wet-armature construction allows all ports to be fully pressurized. The unit also boasts a unitized, molded coil design and offers optional waterproof E-Coils rated up to IP69K, suitable for harsh environmental conditions. With a standard industry cavity (VC083), the valve facilitates easy installation in various hydraulic systems without orientation restrictions. It supports a wide range of operating temperatures depending on the seal material used—ranging from -40°C to +100°C with Buna N seals, -26°C to +204°C with Fluorocarbon seals, and -54°C to +107°C with Polyurethane seals. The valve is capable of handling pressures up to 207 bar (3000 psi) with proof pressure at 241 bar (3500 psi) and burst pressure reaching up to 620 bar (9000 psi). This model's durability is further supported by its ability to operate within a fluid viscosity range of 7.4 to 420 cSt and withstand maximum operating contamination levels as specified by ISO standards. The Hydraforce SV08-31-0-N-24ERZ is an efficient solution for directing flow in hydraulic systems requiring robust performance in variable conditions.
