10.280LA PWR3-A00-B6-M SO3000 (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

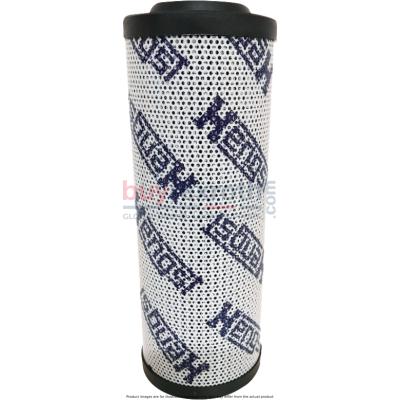

The Hengst 10.280LA PWR3-A00-B6-M SO3000 (1015399B) is a high-performance hydraulic filter element designed to optimize filtration in hydraulic systems. This model features a multilayer glass fiber material, designated as PWR3, which enhances its retention and dirt holding capacities while minimizing pressure loss. With dimensions of 384.5 mm in length, 73.5 mm in outer diameter, and 34.5 mm in inner diameter, it is engineered to fit seamlessly into compatible systems. The filter element is equipped with a bypass valve coded B6 and can withstand a collapse pressure rating of up to 30 bar, ensuring reliability under demanding conditions. The Hengst filter element also includes an NBR seal (seal code M), providing excellent resistance against various fluids typically encountered in hydraulic applications. Its design classifies it as a standard support cage material filter element, ensuring durability and stability during operation. Notably, the bypass cracking pressure is rated at 6 bar, allowing for controlled fluid flow even when the filter media reaches its capacity. This specific model is suitable for use with HFC and HFA fluids but does not conform to DIN24550 standards and does not operate without a support cage. The nominal size of this filter element is 280LA, making it ideal for applications requiring precise filtration performance within these parameters. Overall, the Hengst 10.280LA PWR3-A00-B6-M SO3000 offers robust filtration capabilities essential for maintaining optimal performance and longevity of hydraulic systems where it is employed.
