10TEN0250-PWR10A00-P2,2-M-S6 (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

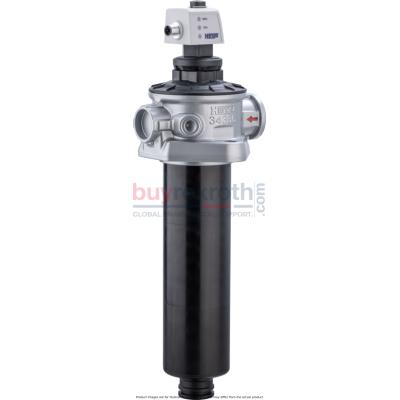

The Hengst 10TEN0250-PWR10A00-P2,2-M-S6 (1010288B) is a hydraulic tank-mounted return line filter designed for efficient filtration of solids from liquids in hydraulic or lubrication systems. This model features a multilayer glass fiber material filter media designated as PWR10, ensuring high-performance filtration with a filtration grade of 10. The filter's housing is constructed from durable aluminum and is designed for tank-top mounting with a port designation of 1 1/2'' - 3000 psi, conforming to SAE standards. The design incorporates an NBR seal code (M), providing reliable sealing under various operating conditions. It has a collapse pressure rating of 30 bar and can handle a maximum working pressure of up to 10 bar, making it suitable for high-pressure applications. The bypass cracking pressure is set at 3.5 bar, allowing for controlled operation under varying pressure conditions. Additionally, this model includes an optical indicator for monitoring the filter's status, with a switching point at 2.2 bar to alert users when maintenance or replacement is necessary. The Hengst 10TEN0250-PWR10A00-P2,2-M-S6 is also compliant with DIN24550 standards and suitable for use with HFC and HFA fluids, ensuring versatility across different fluid types used in industrial applications.
