10.500LA PWR6-A00-6-M SO3000 (2 PACK)

Manufacturer: Hengst

Material #: 1003897B (2 Pack)

Model : 10.500LA PWR6-A00-6-M SO3000 (2 PACK)

Destination

$319.68 USD

($159.84 USD/Each)

Sold in packs of 2

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as September 1, 2026

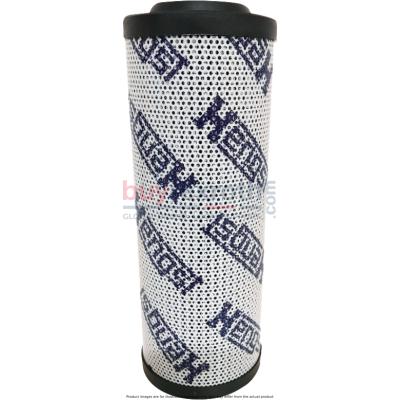

The Filter Element is the central component in a filter, where the actual filtration takes place. The key filter parameters such as retention capacity, dirt holding capacity and pressure loss are determined by the Filter Element and the filter media used.

Dimension L:	275.5 mm
Dimensions Od:	94.5 mm
Dimensions Id:	48.3 mm
Bypass Valve Code:	6
Collaps Pressure Code:	A
Design Class:	Filter element
Filter Material Configuration:	PWR6
Filter Media Code:	PWR
Filter Media Designation:	Multilayer glass fiber material
Nominal Size:	500LA
Seal Code:	M
Seal Designation:	NBR
Series:	10
Support Cage Material:	Standard
Bypass Cracking Pressure:	3,0
Hfc Hfa Suitability:	Yes
Din24550:	No
Without Support Cage:	No
Collapse Pressure Rating:	30 bar
Volume:	0.000 m³
