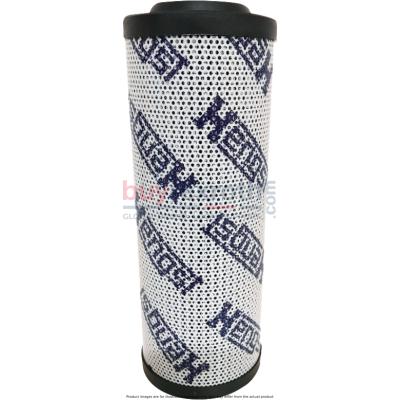

10.160 P25-A00-6-M (4 PACK)

Manufacturer: Hengst

Material #: 1003850B (4 Pack)

Model : 10.160 P25-A00-6-M (4 PACK)

Destination

$177.92 USD

($44.48 USD/Each)

Sold in packs of 4

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as September 1, 2026

The Filter Element is the central component in a filter, where the actual filtration takes place. The key filter parameters such as retention capacity, dirt holding capacity and pressure loss are determined by the Filter Element and the filter media used.

Dimension L:	142 mm
Dimensions Od:	60 mm
Dimensions Id:	34.2 mm
Bypass Valve Code:	6
Collaps Pressure Code:	A
Design Class:	Filter element
Filter Material Configuration:	P25
Filter Media Code:	P
Filter Media Designation:	Filter paper
Nominal Size:	160
Seal Code:	M
Seal Designation:	NBR
Series:	10
Support Cage Material:	Standard
Bypass Cracking Pressure:	3,0
Hfc Hfa Suitability:	No
Din24550:	No
Without Support Cage:	No
Collapse Pressure Rating:	30 bar
Volume:	0.000 m³
