$13,224.00 USD
Qty:
Delivered as early as November 4, 2026
| Bypass Valve Code: | 7 |
| Collaps Pressure Code: | A |

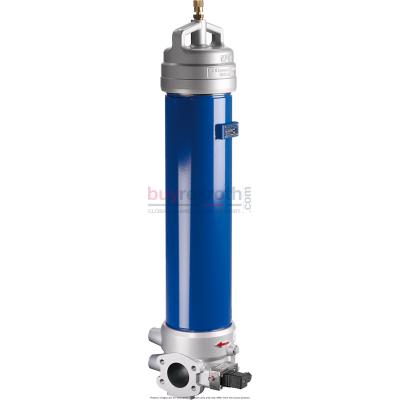

| Design Class: | Inline filter, single |
| Filter Material Configuration: | PWR3 |
| Filter Media Code: | PWR |
| Filter Media Designation: | Multilayer glass fiber material |
| Nominal Size: | 0270 |
| Seal Code: | M |
| Seal Designation: | NBR |
| Series: | 40FLE |
| Support Cage Material: | Standard |
| Bypass Cracking Pressure: | 3,5 |
| Hfc Hfa Suitability: | No |
| Din24550: | No |
| Collapse Pressure Rating: | 30 bar |
| Volume: | 0.000 m³ |
| Adhesive Basis: | PUR-Basis |
| Filtration Grade: | 3 |
| Housing Material: | Carbon steel / Aluminum |
| Mounting: | Back |
| Port Code: | S |
| Port Designation: | 4" - 3000psi |
| Port Position: | Horizontal-vertical |
| Port Standard: | SAE |
| Max Working Pressure Bar: | 40 bar |
| Nominal Pressure Bar: | 40 bar |
| Check Valve: | No |
| Indicator Existing: | Yes |
| 2 Parted Bowl: | No |
| Cyclone Effect: | No |
| Lid Lifting Device: | No |
| Indicator Designation: | Optical |
| Switching Point: | 2.2 bar |
