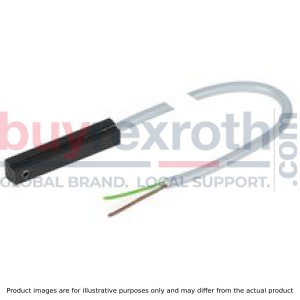

MAGNETIC FIELD SENSOR HALL NPN_NC H 15638

Manufacturer: Bosch Rexroth

Material #: R347601303

Model : MAGNET.FIELD SENOR HALL NPN_NC H 15638

Destination

$272.32 USD

Availability: 156 In Stock

Ships from US

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Qty:
Delivered as early as October 21, 2026

MAGNETIC FIELD SENSOR HALL NPN_NC H 15638

Unpacked Weight: 0.0363 kg

Electrical accessories for linear axes	Magnetic sensors
Certifications and approvals	‒
Permissible ambient temperature	-40 °C ... +85 °C
Cable diameter D tolerance	±0.2
Cable diameter D	3.2
Bending cycles footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Connection type	Cable 2.0 m, 3-pin
Galvanized connection ends	✓
Compatible	CKK, CKR, MKK/MKR-040, AGK, VKK
Cable cross-section	3x0,14
Static bending radius	‒
Dynamic bending radius	‒
Torsion-resistant footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Activation point (dimension x)	13.65
Torsion-resistant	‒
Operating voltage	3.8 ... 30
Weld spark-resistant footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant	‒
Short-circuit protection	‒
Suitable for drag chains	nein
Suitable for drag chains footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Load current	≤20
Switching function version	Hall, NPN/NC
Productgroup ID	17
MTTFd (per EN ISO 13849-1 )	‒
Permissible ambient temperature (max)	+85
Bending cycles	‒
Dynamic bending radius footnote	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Permissible ambient temperature (min)	-40
Switching frequency	2.5
Protection class	IP66
Max. permissible approach speed	2
Reverse polarity protection	‒
Footnote cable cross-section	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Switch-on suppression	no
Functional principle	magnetic
Use	Limit switch
Pulse extension	‒
Function indicator	no
Weight	0.0363

Technische Daten

Part number		R347600903	R347601003	R347601203	R347601303	R347601403	R913011323	R913011324	R347601903	R347601803
Functional principle		Magnetic
Contact type									Hall, PNP normally closed	REED, changeover
Operating voltage	V DC	≤ 30	3.8 ... 30				≤ 30	3.8 ... 30
Current consumption	mA								≤ 10
Output current	mA								≤ 20
Switching voltage	V DC									≤ 100
Switching current	mA									≤ 500
Cable length	mm								2000
Housing protection class									IP66
Load current	mA	500	≤ 20				500	≤ 20
Switching function		REED / changeover contact (NC: C+NC, NO: C+NO)	Hall PNP/normally closed (NC)	Hall, PNP/normally open (NO)	Hall, NPN/normally closed (NC)	Hall, NPN/normally open (NO)	REED / changeover contact (NC: C+NC, NO: C+NO)	Hall PNP/normally closed (NC)
Connection type		Line 2.0 m, 3-pin
Galvanized connection ends		✔
Function indication		‒
Short-circuit protection		‒
Reverse polarity protection		‒
Switch-on suppression		‒
Switching frequency	kHz	2.5
Pulse delay (Off delay)		‒
Maximum permissible starting speed	m/s	2
Suitable for flexing installation 1)		‒
Can withstand torsion 1)		‒
Weld spark resistant 1)		‒
Cable cross-section 1)	mm2	3x0,14
Cable diameter D 1)		3.2 mm ±0.2
Bending radius, stationary 1)		‒
Bending radius, flexing 1)		‒
Bending cycles 1)		‒
Maximum permissible travel speed 1)		‒
Maximum permissible acceleration 1)		‒
Permissible ambient temperature (min ... max)		-40 °C ... +85 °C
Protection type		IP66
MTTFd (as per EN ISO 13849-1 )		‒
Certifications and approvals		‒

1)	Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain.

Attention: R347601803 has 2 switching points.

Pin assignment

1)	Hall sensor
2)	Reed sensor
3)	White: +3.8 ... 30 VDC
4)	Green: Output
5)	Brown: 0 V ground
6)	Brown
7)	White
8)	Green

1)	Cable length 10 m
2)	Activation point
3)	Active surface
4)	Set screw for retention

Dimensions

Part number	Activation point (dimension "X")
Part number	mm
R347600903	9
R347601003	13.65
R347601203
R347601303
R347601403
R913011323	9
R913011324	13.65
R347601903	-
R347601803	-

No certificate for import into

the Chinese market is necessary for these products.
