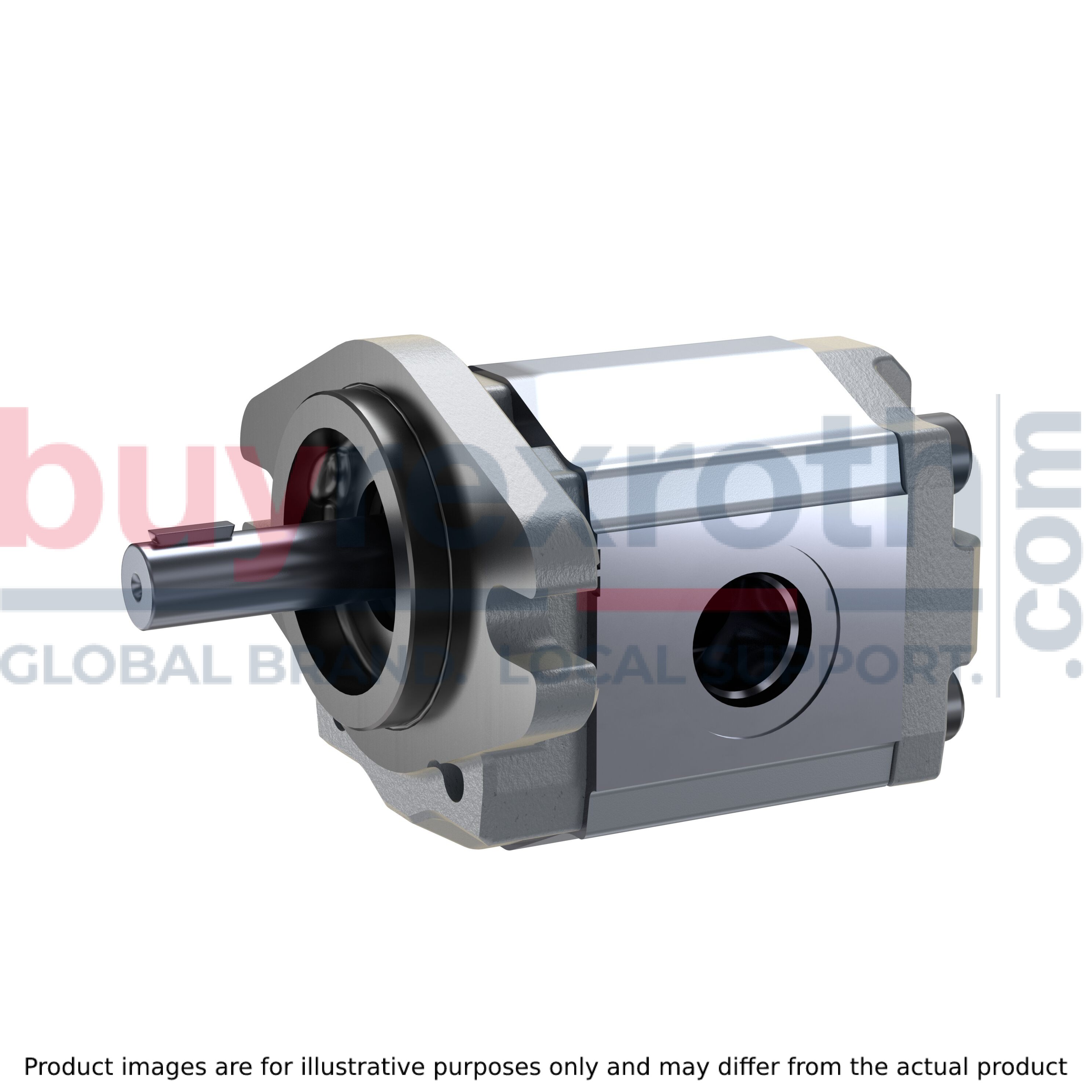

HYDRAULIC GEAR PUMP AZPB-32-3.1RQR12KB-S0022

Manufacturer: Bosch Rexroth

Material #: R979107386

Model : AZPB-32-3.1RQR12KB-S0022

$254.00 USD

More are expected on September 16, 2025

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Status: This product is temporarily out of stock.

Qty: Delivered as early as September 16, 2025 when ordered in

This product is eligible for factory repair.

Start Repair

HYDRAULIC GEAR PUMP AZPB-32-3.1RQR12KB-S0022

3.15 cm³/rev, Clockwise rotation, Straight shaft SAE J744 13-1, 2-bolt flange SAE J744 50-2 (A-A), Thread UN-2B, SAE O-Ring

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Unpacked Weight: 1.4 kg

Slide bearings for high loads
Long service life
Port connections: flanged or threaded
Consistent high quality based on large-volume production
Drive shafts according to ISO or SAE and customer specific solutions

Offer Drawing	Download Offer Drawing
Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Rear cover	Standard
Maximum rotational speed	4000
Productgroup ID	7,21,22,23,24,25
Size (geometric displacement)	3.15
Sealing material	NBR, shaft seal in FKM
Version	Corrosion resistant, pinned
Special version	Deviations from catalogue standards, see drawing
Noise level	Standard noise level
External gear unit	External Gear Unit
Application	general
Drive shaft	Straight shaft SAE J744 13-1
Housing material	Aluminum
Line connection	Thread UN-2B, SAE O-Ring
Series	Model B (0.84 ... 10 cm³/rev)
Front cover	2-bolt flange SAE J744 50-2 (A-A)
Maximum intermittent pressure	250
Direction of rotation	Clockwise rotation
Unit version	Bearing diameter 12mm
External gear unit function	Pump
Weight	1.4
Max. flow	12.6
