VT-HACD-DPQ-2X/V1/1-C-0

Manufacturer: Bosch Rexroth

Material #: R978918472

Model : VT-HACD-DPQ-2X/V1/1-C-0

$5,597.00 USD

More are expected on September 29, 2025

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Status: This product is temporarily out of stock.

Qty: Delivered as early as September 29, 2025 when ordered in

Actual value recording via SSI encoder, incremental or analog position measurement system possible Free configuration of the valve control spool Control loop adjustment Jog mode controlled Separate menus for injection, holding pressure and back pressure Pressure transition via:
- Position
- Internal mold pressure
- Hydraulic pressure via position
- Discrete input Enable input and OK output ±10 V reference voltage output Front display with keys to display and change parameters as well as for diagnosis purposes. RS232 serial interface Up to 32 controller cards can be interconnected for parameterization and diagnosis via the local bus internal or analog profile I/O configuration

01		02		03		04		05		06		07
VT-HACD-DPQ	–	1	–	2X	/	V0	/	1	–		–	0

01	Digital controller card	VT-HACD-DPQ
02	One axis	1
03	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)	2X
04	Basic unit	V0
05	With display	1
06	Without bus connection	0
	CANopen	C
	DeviceNet	D
07	Without valve output stage	0

General

Component series		2X

Voltage supply

Operating voltage		UB		24 VDC
Operating voltage	Lower limit value	UB(t)min	V	21
Operating voltage	Upper limit value	UB(t)max	V	30
Current consumption		Imax		150 mA
Fuse		IS		4 A time-lag

Analog inputs

Number				6
Voltage inputs	Range	U		0 to 10 V or ±10 V (configurable)
	Input resistance	Re		100 kΩ, > 10 MΩ for input AI 1
	Resolution			5 mV for range ±10 V, 2.5 mV for range 0...10 V
	Non-linearity		mV	< 10
Current inputs	Range	I		0...20 mA or 4...20 mA (configurable)
	Input resistance	Re		100 Ω
	Leakage current	Iv		0.15 % (with 500 Ω between pin AI x- and 0 V)
	Resolution			5 μA

Digital inputs

Signal	log 0		0 to 5 V
Signal	log 1		16 V to UB

Analog outputs

Number				3
AO1 voltage output	Output voltage	U		0 to 10 V or ±10 V (configurable)
	Current, max.	Imax	mA	10
	Load, min.	RLmin	kΩ	1
	Resolution			1.25 mV (14 bit)
	Residual ripple			±15 mV (without noise)
AO1 current output	Current	I		0...20 mA or 4...20 mA (configurable)
	Load, max.	Rmax	Ω	500
	Resolution			1.25 μ
	Residual ripple			±15 µA (without noise)
AO2/AO3 voltage output	Output voltage	U		±10 V
	Current, max.	Imax	mA	10
	Load, min.	RLmin	kΩ	1
	Resolution			10 mV (11 bit)
	Residual ripple			±25 mV (without noise)

Digital outputs

Number				8
Logic level				log 0 (low) ≤ 2 V; log 1 (high) ≤ UB; Imax = 20 mA, maximum load capacity C = 0.047 μF
Connection				flexible conductor up to 1.5 mm2
Reference potential for all signals				GND
Signal	log 0			0 to 5 V
Signal	log 1			16 V to UB
Current, max.		Imax	mA	30

Digital position transducer (encoder)

SSI transducer	Line receiver/driver			RS485

Other characteristics

Reference voltage	U	V	± 10
Load, max.	Imax	mA	30
Residual ripple		mV	< 20
Scanning time	t	ms	2
Interface, serial			RS 232 (front plate), D-Sub socket
Anschlussart			64-pin male connector, DIN 41612, form G
Local bus, distance to the furthermost device, max.	I		max. 280 m line length
Operating temperature range	ϑ	°C	0 … +50
Storage temperature range	ϑ	°C	-20 … +70
Weight	m	g	0.2

For applications outside these parameters, please consult us!

Block diagram

1	Analog inputs, voltage or current
2a	SSI encoder
2b	Incremental encoder
3	Enable and digital input
4	Setting analog inputs
5	Internal profile
6	Feedback selection
7	Controller
8	control spool configuration
9	Analog outputs (voltage or current)
10	OK output and digital outputs
11	CAN interface, optional
12	Local bus

Pin assignment of the D-Sub socket on the front panel

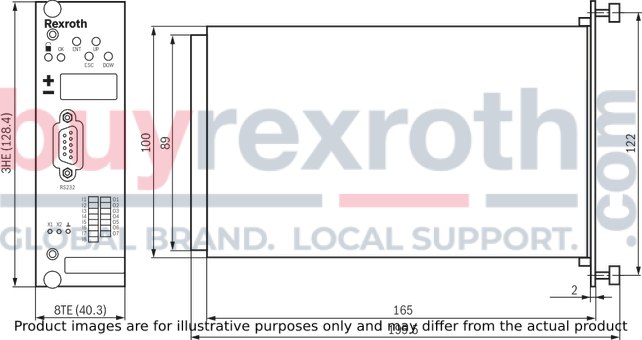

Dimensions in mm
