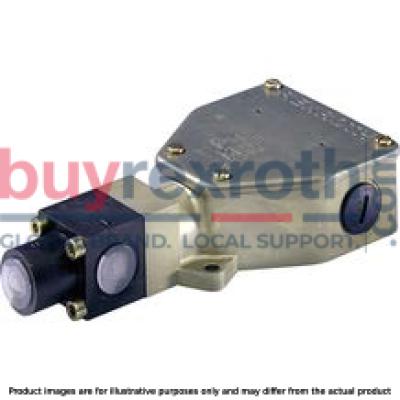

HED 1 OA-4X/350KL110V/12

$750.00 USD

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as October 3, 2024 when ordered in

Start Repair

With leakage port, optional Control lamp, optional Electrical connection- Cable gland- Plug-in connector

01	02	03	04		05	06	07	08	09
HED 1		A	4X	/					*

01	Hydraulic/electric pressure switch	HED 1
02	With leakage port	K
02	Without leak connection	O
03	Device type	A
04	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Type HED 1 K
05	Pressure rating maximum 100 bar	100
	Pressure rating maximum 350 bar	350
	Pressure rating maximum 500 bar	500
Type HED 1 O
	Pressure rating maximum 50 bar	50
	Pressure rating maximum 100 bar	100
	Pressure rating maximum 350 bar	350
06	Cable gland	no code
06	Plug-in connector 6-pole + PE	K61)
07	without lamp	no code
07	Lamp for 24 V (20 V to 35 V)	L24
Seal material
08	NBR seals	no code
	FKM seals (other seals upon request)	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
09	Further details in the plain text

	1) Mating connector, separate order, see below

Additional preferred types and standard units are specified in the EPS (standard price list).

Type

Component series		4X

Weight	m	kg	1.2
Installation position			Any
Ambient temperature ranges (NBR seals)	ϑ	°C	-30 … +50
Ambient temperature ranges (FKM seals)	ϑ	°C	-20 … +50

Type / version			HED 1 KA	HED 1 KA	HED 1 KA	HED 1 OA	HED 1 OA	HED 1 OA
Pressure rating	p	bar	100	350	500	50	100	350
Max. operating pressure 1)	p	bar	600			80	350
Pressure adjustment range (decreasing)	p	bar	3 … 92	6 … 325	10 … 465	2 … 45	3 … 82	6 … 295
Pressure adjustment range (increasing)	p	bar	6 … 100	10 … 350	20 … 500	3.5 … 50	8 … 100	20 … 350
Maximum pressure at the leakage port	p	bar	2
Hydraulic fluid temperature range (NBR seals)	ϑ	°C	-30 … +80
Hydraulic fluid temperature range (FKM seals)	ϑ	°C	-20 … +80
Viscosity range	μ	mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 2)			Class 20/18/15 according to ISO 4406 (c)

1)	short-time
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Anschlussart				Cable gland Pg 11; plug-in connector Pg 11
Protection class according to DIN EN 60529				IP65 (with mating connector mounted and locked)
Line cross-section	Mating connector, max.		mm²	1.5
Line cross-section	Cable gland, max.		mm²	4
Switching frequency, max. 1)	Type HED 1 OA		1/h	3000
Switching accuracy (repetition accuracy)				< 2 % of the set pressure
Contact load	AC voltage	I		250 V; 3 A
Contact load	Direct voltage	I		40 V; 1 A; In case of DC voltage with inductive load, spark extinguishing is to be provided in order to increase the life cycle.
