R978906947

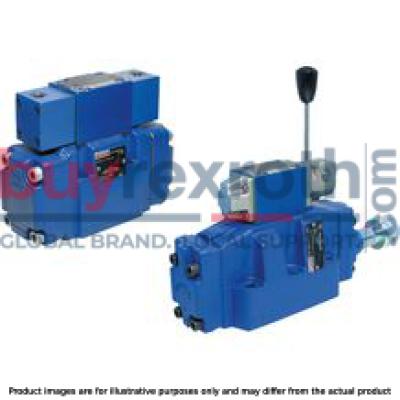

4WPH 16 K7X/6ET/B30/A

Manufacturer: Bosch Rexroth

Material #: R978906947

Model : 4WPH 16 K7X/6ET/B30/A


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WPH 16 K7X/6ET/B30/A (R978906947) is a high-precision hydraulic component designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. This direct-operated directional spool valve features pneumatic-hydraulic actuation and is built for subplate mounting with a porting pattern that adheres to ISO standards. The main control spool of the valve is balanced by return springs and can be held in its initial position either by these springs or through pressurization. The valve's operation is governed by a pilot control valve that regulates the flow through internal or external pilot oil supply via ports X and Y. The actuation of this pilot valve allows for the manipulation of the main control spool, thereby altering the connection between ports P, A, B, and T to control fluid dynamics within a hydraulic circuit. An optional manual override feature provides additional flexibility, enabling users to operate the control spool without pneumatic pressure. The device also offers several customization options including spring centering, spring end position or hydraulic end position configurations, as well as adjustable switching times. Users can further tailor the valve's performance with optional features such as preload valves in channel P, stroke settings on the main spool, and inductive position switches for enhanced operational precision. This model comes from Component series X and can withstand a maximum operating pressure of up to bar while facilitating a maximum flow rate of l/min. Its robust design ensures reliable operation in various applications where precise fluid control is essential. The Bosch Rexroth 4WPH 16 K7X/6ET/B30/A is an exemplary choice for those seeking a durable and versatile directional control valve solution.

$1,761.00 USD

More are expected on June 20, 2025
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as June 20, 2025 when ordered in

This product is eligible for factory repair.
