The Bosch Rexroth 4WMMH 10 J4X/F (R978906879) is a high-performance directional spool valve designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. This valve falls under the WMMH type, known for its mechanical-hydraulic actuation and compatibility with various applications. The main components of this valve include a housing, a control spool, return springs, and a mechanically actuated pilot control valve.
The 4WMMH 10 J4X/F is characterized by its robust construction and efficient design which corresponds to the function of type WPH valves but with mechanical actuation for the pilot control valve. The valve offers options for external or internal pilot oil supply with specific requirements for modifications only to be carried out by authorized specialists or at the factory.
This model is suitable for subplate mounting and features porting patterns according to ISO standards. It offers flexibility in customization with options such as spring centering, hydraulic end position, auxiliary operating devices, switching time adjustments, preload valves in channel P, stroke setting on the main spool, and inductive position switches or proximity sensors.
The 4WMMH 10 J4X/F is designed to handle maximum operating pressures and flow rates as specified in its technical data. It comes in different sizes including NG6 and NG10 with component series ranging from X to X3. The maximum operating pressure can reach up to bar while it can accommodate a maximum flow of l/min.
With these specifications, the Bosch Rexroth 4WMMH 10 J4X/F (R978906879) ensures reliable performance and adaptability for sophisticated hydraulic systems requiring precise flow direction control.
$1,696.00 USD
More are expected on April 21, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 21, 2025 when ordered in
This product is eligible for factory repair.
Types of actuation: Hand lever For subplate mounting Porting pattern according to ISO 4401 Subplates according to data sheets 45054 to 45060 (separate order) Spring centering, spring end position or hydraulic end position Optional auxiliary operating device Switching time adjustment, optional Preload valve in channel P of the main valve, optional Stroke setting at main spool, optional Stroke setting and/or end position control, optional Inductive position switch and proximity sensors (contactless)
Type 4WMMH …

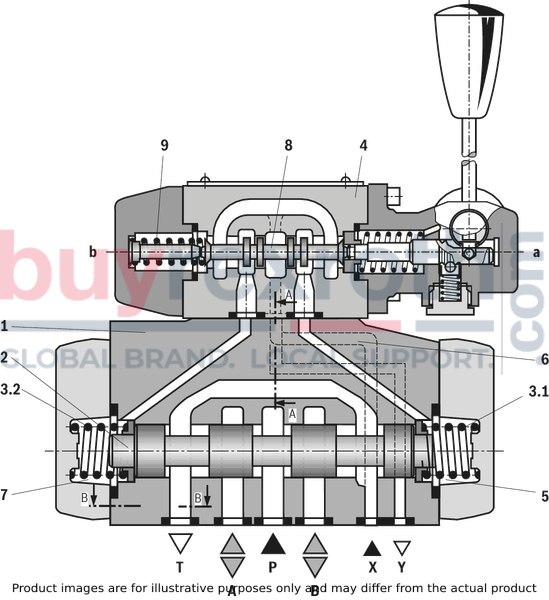

Valves of type WMMH are directional spool valves with mechanical-hydraulic actuation. They control the start, stop and direction of a flow.
The directional valves basically consist of the main valve with housing (1), the main control spool (2), one or two return springs (3.1) and (3.2), as well as the pilot control valve (4).
The function of the valves corresponds to the function of valves of type WPH. The pilot control valve is, however, actuated mechanically.
Pilot oil supply
NG10
Pilot oil supply
NG16
Pilot oil supply
NG25 (type 4W.H 22 .7X/…)
Pilot oil supply
NG25 (type 4W.H 25 .6X/…)
Pilot oil supply
Size 32
Attention!
The pilot oil supply may only be modified by authorized specialists or at the factory!
– External pilot oil supply X or return Y :
with NG10, version SO30 has to be used if sandwich plates are installed. The identification SO30 has to be used at the end of the type designation (sandwich plate). the maximum admissible operating parameters of the pilot control valve must be observed! maximum pilot pressure: please observe the Technical data!– Internal pilot oil supply (version “ET” and “E”):
minimum pilot pressure: please observe the Technical data! to prevent inadmissibly high pressure peaks, a “B10” throttle insert must be provided in port P of the pilot control valve.
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
||
WMMH |
/ |
6 |
/ |
* |
01 |
up to 280 bar |
no code |
02 |
3-way version |
3 |
4-way version |
4 |
|
Types of actuation |
||
03 |
mechanical-hydraulic: Hand lever |
WMMH |
Size |
||
04 |
NG10 |
10 |
NG16 |
16 |
|
NG25 (type 4W.H 22 .7X/…) |
22 |
|
NG25 (type 4W.H 25 .6X/…) |
25 |
|
Size 32 |
32 |
|
Spool return in the main valve |
||
05 |
by means of springs |
no code |
hydraulic 3) |
H |
|
06 |
Symbols; for the possible version, see "Symbols/Circuit diagrams" |
|
Component series |
||
07 |
40 to 49 – NG10 (40 to 49: unchanged installation and connection dimensions) |
4X |
60 to 69 – NG25 (4W.H 25.) and NG32 (60 to 69: unchanged installation and connection dimensions) |
6X |
|
70 to 79 – NG16 (from series 72) and NG25 (4W.H 22.) (70 to 79: unchanged installation and connection dimensions) |
7X |
|
Spool return in the pilot control valve with 2 spool positions only possible with spools B, C, D and hydraulic control spool return in the main valve: |
||
08 |
With spring return |
no code |
Without spring return with detent |
F |
|
Pilot control valve |
||
09 |
with mechanical, manual actuation |
6 |
10 |
Without manual override |
no code |
11 |
External pilot oil supply, external pilot oil return 1) |
no code |
Internal pilot oil supply, external pilot oil return 1; 2) |
E |
|
Pilot oil supply internal, pilot oil return internal 2) |
ET |
|
External pilot oil supply, internal pilot oil return 1) |
T |
|
12 |
without switching time adjustment |
no code |
Switching time adjustment as supply control |
S |
|
Switching time adjustment as discharge control |
S2 |
|
Spool position monitoring |
||
13 |
Without position switch |
no code |
Monitored spool position "a" |
QMAG24 |
|
Monitored spool position "b" |
QMBG24 |
|
Monitored spool position "a" and "b" |
QMABG24 |
|
Monitored rest position |
QM0G24 |
|
14 |
Stroke setting see stroke setting in type key table |
|
Throttle insert |
||
15 |
Without throttle insert |
no code |
Throttle Ø 0.8 mm |
B08 |
|
Throttle Ø 1.0 mm |
B10 |
|
Throttle Ø 1.2 mm |
B12 |
|
Throttle Ø 1.5 mm |
B15 |
|
Throttle Ø 2.0 mm |
B20 |
|
Throttle Ø 2.5 mm |
B25 |
|
preload valve (not for NG10) 4) |
||
16 |
without preload valve |
no code |
with preload valve (pö = 4.5 bar) |
P4,5 |
|
17 |
without pressure reducing valve |
no code |
with pressure reducing valve |
D3 4) |
|
Seal material |
||
18 |
NBR seals |
no code |
FKM seals (other seals upon request) |
V |
|
Observe compatibility of seals with hydraulic fluid used. |
||
19 |
Information in the plain text |
* |
1) External pilot oil supply X or return Y: | |
– with NG10, version SO30 has to be used if sandwich plates are installed. The identification SO30 has to be used at the end of the type designation (sandwich plate). | |
– the maximum admissible operating parameters of the pilot control valve must be observed! | |
– observe the maximum pilot pressure! | |
2) Internal pilot oil supply (version “ET” and “E”): | |
– minimum pilot pressure: please observe the Technical data! | |
– to prevent inadmissibly high pressure peaks, a “B10” throttle insert must be provided in port P of the pilot control valve (see Pilot oil supply). | |
3) 2 spool positions (hydraulic end position): only piston C, D, Y, K ,Z | |
4) only in connection with throttle insert “B10” |
pSt |
Pilot pressure |
ppilot min |
Pilot pressure, minimum |
ptank |
Tank pressure |
pö |
Cracking pressure |
Preferred types and standard units are contained in the EPS (standard price list).
general
Size |
10 | 16 | 25 (4W.H22) | 25 (4W.H25) | 32 | ||
Weight (approx.) |
kg |
6.4 | 8.5 | 11.5 | 17.6 | ||
Switching time adjustment |
kg |
0.8 | |||||
Pressure reducing valve |
kg |
0.4 | |||||
Installation position |
any; horizontal with valves with hydraulic control spool return “H” and spool symbol B, C, D, K, Z, Y | ||||||
Ambient temperature range |
°C |
-30 … +50 | |||||
Storage temperature range |
°C |
-20 … +70 | |||||
Surface protection |
Valve body |
Coating, layer thickness max. 100 μm |
hydraulic
Size |
10 | 16 | 25 (4W.H22) | 25 (4W.H25) | 32 | |||
Maximum operating pressure |
Port P |
bar |
280 | |||||
Anschluss A |
bar |
280 | ||||||
Port B |
bar |
280 | ||||||
Port T |
External pilot oil return Y |
bar |
280 | 250 | ||||
Internal pilot oil return Y 1) |
bar |
160 | ||||||
Port Y |
Pilot oil return, external |
bar |
160 | |||||
Hydraulic fluid 2) |
see table | |||||||
Hydraulic fluid temperature range |
NBR seals |
°C |
-30 … +80 | |||||
FKM seals |
°C |
-20 … +80 | ||||||
Viscosity range |
mm²/s |
2.8 … 500 | ||||||
Maximum admissible degree of contamination of the hydraulic fluid 3) |
Class 20/18/15 according to ISO 4406 (c) | |||||||
Maximum pilot pressure 4) |
bar |
250 | 210 | 250 | ||||
Minimum pilot pressure |
External or internal pilot oil supply X (with control spool D, K, E, J, L, M, Q, R, U, W) |
3-spool position valve, spring-centered |
bar |
10 | 14 | 10.5 | 13 | 8.5 |
3-spool position valve, pressure-centered |
bar |
- | 14 | - | 18 | 8.5 | ||
2-spool position valve with spring end position |
bar |
10 | 14 | 11 | 13 | 10 | ||
2-spool position valve with hydraulic end position |
bar |
7 | 14 | 8 | 5 | |||
Internal pilot oil supply X (with control spool C, F, G, H, P, T, V, Z, S) |
bar |
4.5 5) | 4.5 6) 7) | 4.5 7) | ||||
Pilot volume for switching process |
3-spool position valve, spring-centered |
cm³ |
2.04 | 5.72 | 7.64 | 14.2 | 29.4 | |
2-spool position valve |
from zero position in switching position “a” |
cm³ |
4.08 | 11.45 | 15.28 | 28.4 | 58.8 | |
from switching position “a” in zero position |
cm³ |
- | 2.9 | - | 7 | 15.1 | ||
from zero position in switching position “b” |
cm³ |
- | 5.72 | - | 14.15 | 29.4 | ||
from switching position “b” in zero position |
cm³ |
- | 2.83 | - | 5.73 | 14.4 | ||
Pilot flow for shortest switching time, approx. |
l/min |
35 | 45 |
1) | As a 3-spool position valve, pressure-centered only possible if ppilot ≥ 2 x ptank + ppilot min |
2) | The ignition temperature of the process and operating medium used must be over the maximum solenoid surface temperature. |
3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
4) | Internal pilot oil supply: With a higher pilot pressure, use of a “D3” pressure reducing valve is required. |
5) | For symbols C, F, G, H, P, T, V, Z, an internal pilot oil supply is only possible if the flow from P → T in the central position (for 3-spool position valve) or while crossing the central position (for 2-spool position valve) is so large that the pressure differential of P → T reaches a value of at least 6.5 bar. |
6) | Spool S only for NG16 |
7) | For spools C, F, G,J, H, P, T, V, Z, S – by means of preload valve (not NG10) or correspondingly high flow. (Determination of the required flow, see preload valve) |
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
Mineral oil |
HL, HLP |
FKM, NBR |
DIN 51524 |
|
Bio-degradable |
Insoluble in water |
HEES (synthetic esters) |
FKM |
VDMA 24568 |
HETG (rape seed oil) |
FKM, NBR |
|||
Soluble in water |
HEPG (polyglycols) |
FKM |
VDMA 24568 |
|
Other hydraulic fluids on request |
Free flow cross-sections in zero position with spools Q, V and W
Size |
10 | 16 | 25 (4W.H22) | 25 (4W.H25) | 32 | ||
Spool Q |
A – T; B – T |
mm² |
13 | 32 | 78 | 83 | 78 |
Spool V |
P – A |
mm² |
13 | 32 | 73 | 83 | 73 |
A – T; B – T |
mm² |
13 | 32 | 84 | 83 | 84 | |
Spool W |
A – T; B – T |
mm² |
2.4 | 6 | 10 | 14 | 20 |
