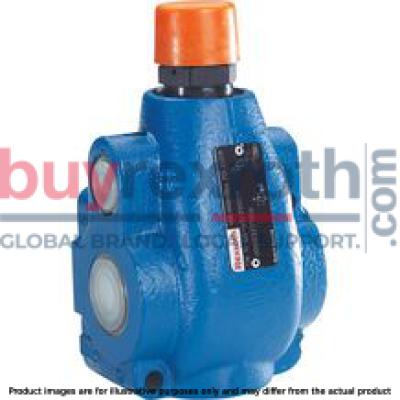

DR15G5-4X/200YMV/12
Manufacturer: Bosch Rexroth
Material #: R978858220
Model : DR15G5-4X/200YMV/12
$814.64 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as March 22, 2027
$991.31 USD
Availability: Backordered
Ships from CA Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as March 22, 2027
This product is eligible for factory repair.
The pressure valve type DR is a pilot-operated pressure reducing valve. It is used to reduce the system pressure.
It mainly consists of screw-in cartridge valve (cartridge) and housing, optionally with or without check valve (subplate mounting only).
In the rest position the valve is open. The hydraulic fluid is able to flow freely from the inlet channel via the main control spool (1) to the outlet channel. The pressure in the outlet channel is applied to the spring-loaded side of the main control spool (1) via the bore (2). At the same time, the pressure acts upon the side of the main control spool (1) that is opposite to the spring via the bores (3) and (4).
If the pressure in the outlet channel exceeds the value set at the spring (6), the pilot poppet (5) opens.
Hydraulic fluid flows from the spring-loaded side of the main control spool (1) via the nozzle (7) and the pilot poppet (5) into the spring chamber (8).
The main control spool (1) assumes its control position and keeps the value in the outlet channel set at the spring (6) constant. The pilot oil return from the spring chamber (8) is always realized externally via the Y port (9).
In subplate mounting version "P", a check valve (10) can be optionally installed for free return flow from channel A to B.
Type DR 10 -4-4X/…
Type DR 20 G-4-4X/…
Notice!
The pressure in port Y is added 1:1 to the set reduced pressure.
(measured with HLP46, ϑOil = 40 ±5 °C)
Minimum adjustable output pressure P dependent on the flow qV (B to A)
Pilot flow qV st dependent on the flow qV (B to A) and the pressure differential Δp
Δpmin-qV characteristic curve (B to A)
Δp-qV characteristic curve (B to A)
Type DR . .-.-4X/.Y
Subplate mounting
Type DR . .-.-4X/.YM, Type DR . K-.-1X/.YM (screw-in cartridge valve)
Subplate mounting, screw-in cartridge valve
Type DR . G-.-4X/.YM
Threaded connection
Subplate mounting
Dimensions in mm
Subplate mounting
Dimensions in mm
|
1 |
Adjustment type "4" |
|
2 |
Adjustment type "5" |
|
3 |
Adjustment type "6" |
|
4 |
Adjustment type "7" |
|
5 |
Lock nut SW22 |
|
6 |
Hexagon SW10 |
|
7 |
Hexagon SW30, tightening torque for screw-in MA = 50 Nm |
|
8 |
Space required to remove the key |
|
9 |
Locking pin |
|
10 |
Valve mounting bores |
|
11 |
Name plate |
|
12 |
Identical seal rings for ports A and B |
|
13 |
Seal ring for port Y |
|
Type |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
B1 |
B2 |
B3 |
B4 |
H1 |
H2 |
H3 |
H4 |
ØD1 |
ØD2 |
ØD3 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| DR10 | 95.5 | 79 | 42.9 | 23 | 2.5 | 21.5 | 85 | 49 | 66.7 | 7.9 | 71 | 60 | 26 | 26 | 35.5 | 21.8 | 15 |
| DR20 | 96 | 79.5 | 60.3 | 7 | 4 | 39.7 | 100 | 58 | 79.4 | 6.4 | 96 | 78 | 26 | 40 | 41 | 34.8 | 25 |
Threaded connection "G"
Dimensions in mm
|
1 |
Adjustment type "4" |
|
2 |
Adjustment type "5" |
|
3 |
Adjustment type "6" |
|
4 |
Adjustment type "7" |
|
5 |
Lock nut SW22 |
|
6 |
Hexagon SW10 |
|
7 |
Hexagon SW30, tightening torque for screw-in MA = 50 Nm |
|
8 |
Space required to remove the key |
|
10 |
Valve mounting bores |
|
11 |
Name plate |
|
14 |
Y port for pilot oil return |
|
Type |
D1 |
ØD2 |
|
mm |
||
| DR 10G | G1/2 | 34 |
| DR 15G | G3/4 | 42 |
| DR 20G | G1 | 47 |
Notice!
In this valve version, no check valve for free return flow is installed in the valve.
Screw-in cartridge valve "K"
Dimensions in mm
|
1 |
Adjustment type "4" |
|
2 |
Adjustment type "5" |
|
3 |
Adjustment type "6" |
|
4 |
Adjustment type "7" |
|
5 |
Lock nut SW22 |
|
6 |
Hexagon SW10 |
|
7 |
Hexagon SW30, tightening torque for screw-in MA = 50 Nm |
|
8 |
Space required to remove the key |
|
15 |
Seal ring |
|
16 |
Support ring |
Mounting cavity
Dimensions in mm
Notice!
Optionally, the connection bores A, B and Y can be applied at the circumference.
Subplates (separate order)
Size 10:G 460/01 (G3/8)
G 461/01 (G1/2)
Size 25:G 412/01 (G3/4)
G 413/01(G1)
Valve mounting screws (separate order)
Size 10:4 hexagon socket head cap screws ISO 4762 - M10 x 40 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 75 Nm ± 10 %
Size 25:4 hexagon socket head cap screws ISO 4762 - M10 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 75 Nm ± 10 %
Notice!
The tightening torques stated are guidelines when using screws with the specified friction coefficients and when using a manual torque wrench (tolerance ± 10 %).
