4WMM6F5X/V

Manufacturer: Bosch Rexroth

Material #: R978847643

Model : 4WMM6F5X/V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WMM6F5X/V (R978847643) is a high-quality directional spool valve designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. This particular model is a manually actuated valve with a hand lever type of actuation, providing precise control over the hydraulic operations. It features a robust housing that incorporates a control spool and one or two return springs which default the spool to its central or starting position when not engaged. The 4WMM6F5X/V is equipped with a detent mechanism allowing each spool position to be securely locked in place depending on the valve type. This feature ensures stable operation and maintains the selected flow direction even under varying hydraulic pressures. Additionally, this model can be optionally configured as either 2 or 3 position valves with detent when operated by hand lever, catering to different system requirements. To accommodate systems where operating conditions might lead to flows that exceed the valve's performance limit during switching processes, this valve can utilize a throttle insert in channel P. The inclusion of this throttle insert helps manage flow rates effectively and prevents potential damage to the valve or system components due to excessive flow during transitions. The 4WMM6F5X/V follows the porting pattern standards set by DIN form A without locating holes and ISO with locating holes, ensuring compatibility with various hydraulic systems. It also supports additional features such as inductive position switches and contactless proximity sensors for enhanced operational feedback. With its size component series X, this directional spool valve can withstand a maximum operating pressure of up to 350 bar and can handle maximum flow rates of up to 60 liters per minute. These specifications make it suitable for an array of applications requiring reliable manual control over hydraulic fluid direction within their systems.

$891.00 USD

More are expected on October 15, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as October 15, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

4/3-, 4/2- or 3/2-way version Porting pattern according to DIN 24340 form A (without locating hole) Porting pattern according to ISO 4401-03-02-0-05 (with locating hole) Type of actuation: hand lever Inductive position switch and proximity sensors (contactless)

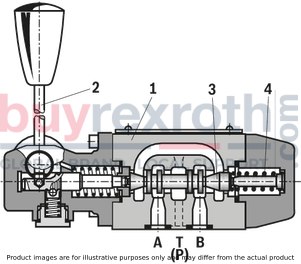

Type WM.. valves are mechanical, manually actuated directional spool valves. They control the start, stop and direction of a flow. Directional valves basically consist of housing (1), one type of actuation (2) (hand lever), control spool (3) and one or two return springs (4). In de-energized state, the return springs (4) maintain the control spool (3) in central or starting position - if the rotary knob is actuated with a detent. The control spool (3) is moved to the desired spool position by means of the type of actuation (2).

Detent

Directional valves with rotary knob are generally designed with detent. Directional valves with hand lever are optionally available as 2 or 3 position valves with detent. Directional valves with roller plunger are generally designed without detent. If types of actuation with detent are used, each spool position can be locked, depending on the valve type.

Throttle insert

The use of a throttle insert is required when due to prevailing operating conditions, flows can occur during the switching processes, which exceed the performance limit of the valve. It is inserted in channel P of the directional valve.

Type 4WMM 6 D5X/F

Type 4WM. 6 ..5X/..B..

01	02	03	04	05		06	07	08		09	10	11	12	13
	WMM	6		5X	/				/		no code			*

01	3 main ports	3
01	4 main ports	4
Type of actuation
02	Hand lever	WMM
03	Size 6	6
04	Symbols e. g. C, E, EA, EB, etc.; for the possible version, see Symbols and Types of actuation
05	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
06	With spring return	ohne Bez.
06	Without spring return with detent	F
Corrosion protection
07	Standard corrosion protection	ohne Bez.
07	Improved corrosion protection 1)	J
Spool position monitoring 2)
08	Without position switch	ohne Bez.
	Inductive position switch type QM
	Monitored spool position "a"	QMAG24
	Monitored spool position "b"	QMBG24
	Monitored rest position	QM0G24
09	Without throttle insert	ohne Bez.
	Throttle Ø 0.8 mm	B083)
	Throttle Ø 1.0 mm	B10 3)
	Throttle Ø 1.2 mm	B123)
Clamping length
10	42 mm (standard)	no code
Seal material
11	NBR seals	ohne Bez.
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
12	Without locating hole	ohne Bez.
	With locating hole	/604)
	With locating hole and locking pin ISO 8752-3x8-St	/62
13	Further details in the plain text	*

	1) The external parts made of metal are galvanized, treated with an anti-corrosion agent or made of stainless steel. This design is also suitable for on-wall applications.
	2) Only for valves with 2 spool positions and versions
	“WMM”; not for version “J”
	3) Use if flow > performance limit of the valve, effective in channel P.
	4) Locking pin ISO 8752-3x8-St, material no. R900005694, separate order

general

Size			6
Weight (approx.)		kg	1.4
Installation position			any
Ambient temperature range	NBR seals	°C	-20 … +80
Ambient temperature range	FKM seals	°C	-20 … +80
Operating force	without tank pressure, with/without detent	N	20
Operating force	at a tank pressure of 150 bar 1)	N	30

1)	at 150 bar

hydraulic

Size			6
Maximum operating pressure	Port P	bar	315
	Port A	bar	315
	Port B	bar	315
	Port T 1)	bar	160
Maximum flow		l/min	60
Flow cross-section (spool position 0)	Symbol Q		approx. 6 % of nominal cross-section
Flow cross-section (spool position 0)	Symbol W		approx. 3 % of nominal cross-section
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid 2)			Class 20/18/15 according to ISO 4406 (c)

1)	With symbols A or B, port T must be used as leakage oil connection if the operating pressure exceeds the admissible tank pressure.
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524
Bio-degradable	Insoluble in water	HETG	NBR, FKM	VDMA 24568
	Insoluble in water	HEES	FKM	VDMA 24568
	Soluble in water	HEPG	FKM	VDMA 24568
Containing water	Water-free	HFDU, HFDR	FKM	ISO 12922
Containing water	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR, HNBR	ISO 12922
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! The flash point of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature. Flame-resistant – containing water: Maximum pressure differential per control edge 50 bar. Pressure pre-loading at the tank port >20% of the pressure differential; otherwise, increased cavitation Life cycle compared to operation with mineral oil HL, HLP 50 to 100%

Inductive position switch type QM: electrical connection

The electric connection is realized via a 4-pole mating connector (separate order) with connection thread M12 x 1.

electrical

Connection voltage (DC voltage)			V	24
Voltage tolerance (connection voltage)				+30 %/-15 %
Admissible residual ripple			%	≤ 10
Max. load capacity			mA	400
Switching outputs				PNP transistor outputs, load between switching outputs and GND
Pinout	1		V	24
	2, 4	Switching output	mA	400
	3	Earthing (GND)	V	0

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Δp-qV characteristic curves

7	Symbol “R” in spool position "b" (A → B)
8	Symbols “G” and “T” in central position (P → T)

Symbols	Direction of flow
Symbols	P-A	P-B	A-T	B-T
A	3	3	–	–
B	3	3	–	–
C	1	1	3	1
D	5	5	3	3
E	3	3	1	1
F	1	3	1	1
G	6	6	9	9
H	2	4	2	2
J	1	1	2	1
L	3	3	4	9
M	2	4	3	3
P	3	1	1	1
Q	1	1	2	1
R	5	5	4	–
T	10	10	9	9
U	3	3	9	4
V	1	2	1	1
W	1	1	2	2
Y	5	5	3	3

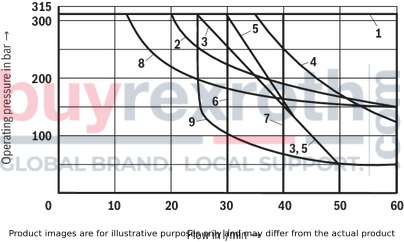

Performance limits

(measured with HLP46, ϑOil = 40 ±5 °C)

Notice!

The specified switching power limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).

Due to the flow forces acting within the valves, the admissible switching power limit may be considerably lower with only one direction of flow

(e. g. from P to A while port B is blocked)!

In such use cases, please consult us!

Version "WMM" - spring return

Characteristic curve	Symbol
1	E,E1–,M,J,L,Q,U,W, C,D,Y,G,H,R
2	A,B
3	V
4	F,P
5	T

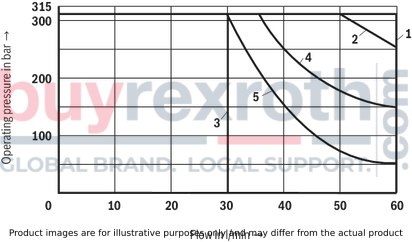

Version "WMM" - with detent

Characteristic curve	Symbol
1	E1–,M,H,C,D,Y
2	E,J,Q,L,U,W
3	A,B
4	G,T
5	F
6	V
7	P
8	R
9	T

	1) Example: Symbol E with spool position "a" → ordering code ..EA.. Symbol E with spool position “b" → ordering code ..EB..
	3) Symbol E1-: P → A/B pre-opening Caution in conjunction with differential cylinders due to pressure intensification!

Notices!

Representation according to DIN ISO 1219-1.

Hydraulic interim positions are shown by dashes.

Type of actuation
Hand lever “WMM”

4/2 directional seat valve – with detent

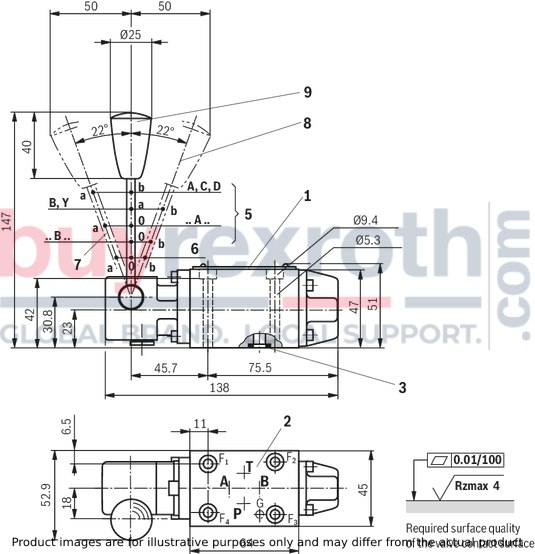

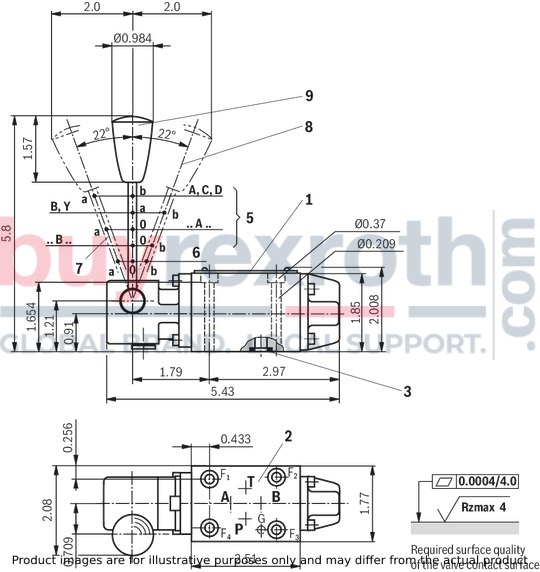

Dimensions in mm

1	Name plate
2	Porting pattern according toISO 4401-03-02-0-05 (with locating hole for locking pin ISO 8752-3x8-St, material no. R900005694, separate order)
3	Identical seal rings for ports A, B, P, and T
5	Valve with 2 spool positions
6	Valve with 3 spool positions
7	Spool position “a”
8	Spool position “b”
9	Spool position “0”, “a” and “b” (a and b for valves with 2 spool positions)

Subplates according to data sheet 45052 (separate order)

(without locating hole)

G 341/01 (G1/4)

G 342/01 (G3/8)

G 502/01 (G1/2)

(with locating hole)

G 341/60 (G1/4)

G 342/60 (G3/8)

G 502/60 (G1/2)

G 341/12 (SAE-6)1)

G 342/12 (SAE-8)1)

G 502/12 (SAE-10)1)

1) On request

Valve mounting screws (separate order)

Clamping length 42 mm:

4 hexagon socket head cap screws, metric

ISO 4762 - M5 x 50 - 10.9-flZn-240h-L

(friction coefficient μtotal = 0.09 to 0.14);

tightening torque MA = 7 Nm ± 10 %,

Material no. R913000064

4 hexagon socket head cap screws

ISO 4762 - M5 x 50 - 10.9 (self procurement)

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 8.1 Nm ± 10 %

4 hexagon socket head cap screws UNC

10-24 UNC x 2″ ASTM-A574

(friction coefficient μtotal = 0.19 to 0.24);

tightening torque MA = 11 Nm ± 15 %,

(friction coefficient μtotal = 0.12 to 0.17);

tightening torque MA = 8 Nm ± 10 %,

material no. R978800693

Spool position monitoring

Inductive position switch type QM, 4WMM

Dimensions in mm

1)	For dimensions, see valve dimensions

3/2 directional seat valve – with detent

Dimensions in mm

1	Cover not available for type WMRZ

Notice:

The dimensions are nominal dimensions which are subject to tolerances.
