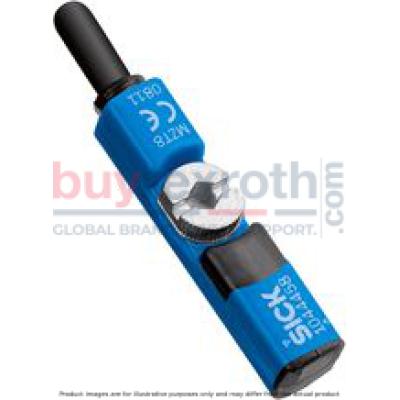

| Electrical accessories for electromechanical cylinders | Magnetic sensors |
| Electrical accessories for linear axes | Magnetic sensors |
| Max. acceleration amax | 5 |
| Note: Max. acceleration amax | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Permissible ambient temperature | -30 °C ... +80 °C |
| Cable diameter D tolerance | ±0.15 |
| Cable diameter D | 2.9 |
| Bending cycles footnote | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Connection type | 0.5 m cable and M8x1 plug, 3-pin with knurled screw connection |
| Compatible | EMC, MKK/MKR-065/080/110, MLR-080/110, FMS, FMB, PSK |
| Cable cross-section | 3x0,14 |
| Static bending radius | ≧ 5xD |
| Dynamic bending radius | ≧ 10xD |
| Torsion-resistant footnote | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Torsion-resistant | ✓ |
| Weld spark-resistant footnote | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Weld spark-resistant | ‒ |
| Short-circuit protection | ✓ |
| Suitable for drag chains | ja |
| Suitable for drag chains footnote | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Load current | ≤200 |
| Switching function version | PNP/NC |
| Productgroup ID | 17 |
| Operating voltage min. | 10 |
| Footnote: Max. permissible travel speed | Technische Daten nur für die angegossene Anschlussleitung (0,5 m) am magnetischen Sensor. Noch mehr Performance, z.B. für den Einsatz in einer Energiekette, bieten die angebotenen Verlängerungsleitungen. |
| Operating voltage max. | 30 |
| Permissible ambient temperature (max) | +80 |
| Dynamic bending radius footnote | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Max. permissible travel speed | 5 |
| Permissible ambient temperature (min) | -30 |
| Switching frequency | 3 |
| Mean time to dangerous failure (MTTFd) | 2339 |
| Footnote bending radius, static | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Protection class | IP68 |
| Footnote cable diameter d with tolerance | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Max. permissible approach speed | 5 |
| Reverse polarity protection | ✓ |
| Pulse extension (off delay) | 20 |
| Operating voltage (min. … max.) | 10 V DC ... 30 V DC |
| Footnote cable cross-section | *) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain. |
| Switch-on suppression | yes |
| Functional principle | magnetic |
| Use | Limit switch |
| Function indicator | yes |
| Weight | 0.01422 |
